E Bike Torque Sensor Calibration Guide for Riders
When pedal assist feels weak, surges unexpectedly, or does not engage after startup, the torque sensor is one possible cause, but it is not the only one. Battery condition, controller settings, wiring, firmware, brake cutoffs, and other sensor or mechanical issues can produce similar symptoms.
Book all-brands e-bike repair in Bend
E bike torque sensor calibration usually means establishing the sensor's unloaded or zero-force reference so the control system can interpret your pedaling input correctly. The exact reset or calibration procedure varies by bike and manufacturer, so check the owner's manual before attempting it. If assist remains inconsistent, avoid guessing at sensor adjustments and have the electrical system diagnosed.
A careful check starts with safe basics. Place the bike as the manual directs, confirm the battery and display look normal, and note whether the problem starts at once or shows up later in the ride. That distinction helps separate a calibration reference issue from a broader electrical or mechanical fault, and it clarifies what the reset can and cannot change.
What does e bike torque sensor calibration actually reset?
At owner level, calibration resets the sensor's zero point, not its full measurement range. When the bike powers on, the system records the unloaded reading as zero effort. If a foot is resting on a pedal, that pressure can become the baseline, so the bike may later provide less assist than expected. In other words, start-up calibration is a reset of the reference point.
Some systems, including some Bosch and Bafang M units, set that zero point at every power-on. Keep the cranks unloaded while starting the bike. Shimano STEPS may display warning W013 when the cranks are loaded during initialization. Once powered on correctly, learning how torque sensors change ride feel can help you recognize when assist is responding normally.
This owner-level reset is different from full scaling calibration, which checks how the sensor's signal corresponds to applied force. That adjustment requires a dealer tool rather than a menu command or a home procedure. If the issue continues after restarting with no pressure on the pedals, avoid assuming that repeating the reset will solve it. Bosch's official note for error 510004 says a torque-sensor fault can remove motor support and walk assist. The published step is to restart, then contact a specialist dealer. Bosch error 510004 guidance.
How do you run an unloaded startup check?
An unloaded startup check is a safe home zeroing step that many torque-sensing systems use before you investigate further. It can help the pedal sensor initialize without pressure on the cranks. Shimano W013, for example, can appear when the pedal sensor does not initialize. Follow your bike manual first, because its instructions override any general guide.
- Stop on level ground. Park securely, switch the system fully off, and make sure the bike is stable before continuing.
- Leave the pedals unloaded. Take both feet off the pedals and keep your hands off the cranks. Do not lean on a pedal or turn the cranks while the system is starting.
- Start the system cleanly. Switch the bike on and wait several seconds before pedaling. This gives the sensor time to complete its startup check without rider input.
- Check the result. Note whether pedal assist returns and whether any warning clears. If assistance comes back normally, ride cautiously and watch for the warning or unusual assist behavior to return.
- Stop after a repeat warning. If the warning returns after a second clean restart, stop using the bike and book service. Do not open the sensor, change wiring, or attempt a component adjustment based only on a general calibration guide.
What else can mimic a bad calibration?
A torque sensor is only one possible source of weak or uneven pedal assist. Startup behavior, drivetrain movement, battery state, ride settings, and recurring warnings can create similar symptoms. Use the pattern of the problem to decide what to check first, and follow your bike maker’s instructions before attempting any reset or adjustment.
| Symptom | Check first | What it may mean |
|---|---|---|
| Weak assist only after a loaded startup | Was a foot on a pedal at power-on? | The zero point may include that load. Restart only as the manual says, with no weight on the pedals. |
| Surging that tracks a loose crank or skipping chain | Crank play, chain skip, or a shift at the same moment | The drivetrain may be changing the signal. Surging is not always the sensor. |
| Assist is fine on a full battery and weak when the battery is low | Charge level and how the manual describes low-battery cutoff | Output may drop as charge falls. Do not assume the sensor is at fault. |
| Assist level or ride profile is very low after an app update | The assist mode and any profile the app changed | An update may have lowered support. Restore it only as the manual says. |
| Warning returns after two unloaded restarts | The exact code and any visible damage | A repeating code needs a shop, not another reset. |
Start with simple observations and record what changes, rather than repeatedly cycling the power or adjusting a sensor without guidance. The electric bike owner troubleshooting checklist can help organize those checks. If the symptom continues, especially surging or a recurring warning, review motor symptoms that need service and arrange an inspection with a qualified technician.
What should you record before an e bike torque sensor calibration visit?
A short note from the last two startups saves the technician from guessing. Write down whether a foot was on a pedal and whether the warning cleared. Also note if assist stayed on for the whole ride or only the first few minutes. That record is more useful than another restart.
Also note the battery level when the problem showed up, the assist mode on the display, and any code exactly as it appeared. Bosch documents error 510004 as a torque sensor that does not work properly, with motor support and walk assist possibly unavailable. The published step is a restart, then a specialist dealer if the problem remains. Shimano STEPS warning W013 means the pedal sensor did not finish its startup check. Those two labels are not interchangeable, so copy the code from your own display rather than matching it to a different brand.
Bring the charger if the bike has been cutting power as the battery drops. A symptom that is fine at a full charge and weak later may be the battery, not the sensor. If water got into a connector after a wash, say so. Moisture changes the inspection even when the code looks like a simple zero-point fault.
What the Bend shop can and cannot promise
Voltaire Cycles can inspect the crank, the electrical system, the motor, the controller, and the software on many brands, including brands the shop does not sell. On systems that support it, a dealer tool can read a live torque value and run a zeroing routine. Some drive-unit sensors are built into the motor and are not a part you swap at home. The shop will not diagnose the bike over the phone, and a calibration from one brand does not transfer to another.
If you are still comparing bikes rather than fixing one, start with the electric bike collection. A free electric bike consultation is the right step before a test ride. For a bike you already own, service is the faster path.
How does weather in Bend change the check?
Cold mornings and wet roads do not change the zero-point idea, but they change what you should notice. A sensor that was fine in a dry garage can act up after a wash or a ride in rain. If the warning showed up only after water, say that when you book service.
Give the bike a minute on level ground before you switch it on. Do not rest a foot on the pedal while you wait. Then start it with the cranks clear and wait several seconds. If assist is smooth on that first block and the code stays gone, you have a useful clue. If it returns on the second clean start, stop there.
Dust on the chainring area is worth a look you can do without tools. Wipe loose grit off the outside of the crank and chainring if the manual allows it. Do not spray water into connectors, and do not open the motor. If wiping does not clear the warning, have a shop inspect the magnet ring.
Central Oregon riders also mix short town trips with longer climbs. A sensor that feels weak only on a steep grade, with a full battery and a normal startup, is a different question from a bad zero point. That pattern belongs with the professional e-bike tune-up, not another home reset.
When should Bend riders book a diagnostic?
If the same warning returns after two unloaded restarts, stop troubleshooting and book service. Surging assist, moisture after washing, loose cranks, or a code that your manual says requires a dealer tool are also good reasons to bring the bike in. A Bend technician can inspect the system safely instead of guessing at a torque sensor calibration.
Signs that home checks have reached their limit
A restart can clear a temporary reading, but it does not repair a recurring fault. If the warning comes back twice with the bike unloaded, make a note of the code and stop repeating resets. Unexpected surging is another reason to avoid a test ride in traffic or on a steep trail. Assistance should respond predictably to your pedaling; an abrupt change can point to a sensor, controller, software, wiring, or mechanical issue that needs a closer look.
Book an inspection promptly if water or condensation appears after washing. Do not open electrical components or continue riding when a connector, display, battery area, or motor shows signs of moisture. Check the specific bike manual for its drying and restart guidance, then give the technician the details of what happened. A loose crank also deserves attention before further riding because it can affect both the mechanical connection and the readings used by a torque-sensing system.
What a dealer-level diagnostic can show
Not every e-bike uses the same sensor design or supports the same adjustment. On systems that provide the function, a dealer tool may read a live torque value and run a zeroing routine. Many drive-unit sensors are not separate, owner-replaceable parts, so a suspected calibration issue may require inspection of the complete drive system rather than a sensor swap. Follow the manual's instructions and do not assume a calibration sequence from one manufacturer applies to another.
Voltaire Cycles' service center in Bend works on electrical systems, motors, controllers, and software across multiple brands, including brands the shop does not sell. The team can assess mechanical and electrical symptoms together, which is useful when a loose crank or inconsistent assist has more than one possible cause. See the all-brands e-bike repair service page for the current scope of support.
For background on care and troubleshooting before a service visit, read the torque-sensor care guide. Bring the bike, charger if relevant, the exact warning or code, and a short description of when the symptom occurs. That information helps the technician reproduce the concern without promising that every fault can be diagnosed remotely or that every sensor can be calibrated in the shop.
When the same warning returns after two unloaded restarts, call Voltaire Cycles or book the repair online.
Frequently Asked Questions
Should I keep my feet off the pedals when I turn on the e-bike?
Yes. Keep the cranks unloaded during startup and wait for the system to finish initializing before you pedal. Pressure on a pedal can be recorded as the zero point, which may make assist feel weaker than expected. Use the startup procedure in your bike's manual because the exact behavior varies by drive system.
Can I calibrate an e-bike torque sensor at home?
You can usually perform an unloaded startup zeroing if your manufacturer's instructions support it, but that is not the same as a full diagnostic calibration. Do not assume a universal sequence applies to every brand. If the problem remains after a correct unloaded startup, stop changing settings and have the bike inspected.
What does a shop check during a torque sensor diagnostic?

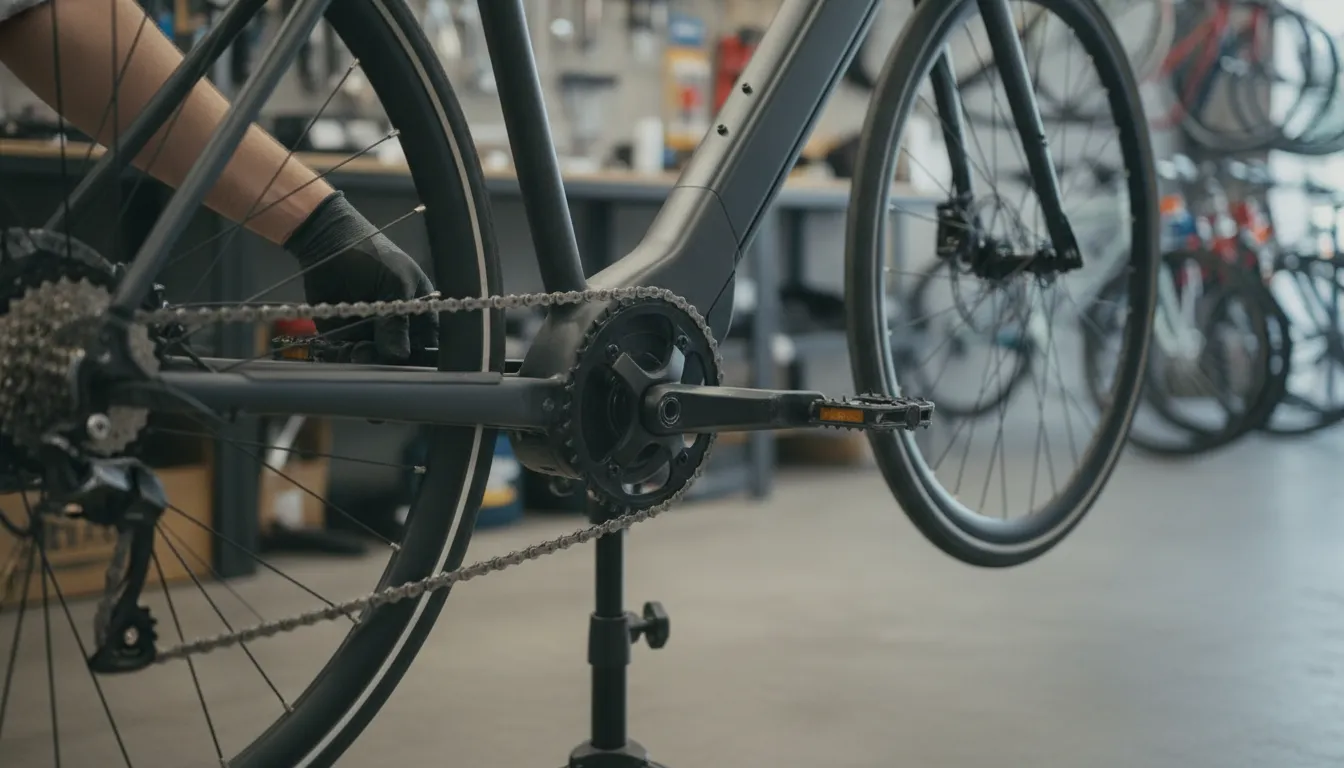

A technician can inspect the crank, chainring, and other mechanical parts. They can also check the battery, connections, stored errors, and the sensor's live behavior when the right tool exists. A test ride after the inspection helps distinguish a sensor problem from weak battery performance or a mechanical fault.
Is surging pedal assist always caused by the torque sensor?
No. Loose or worn mechanical parts, a battery problem, an incorrect assist profile, or a connection issue can also cause weak or inconsistent support. If assist surges unexpectedly, or if wiring or other electrical parts appear damaged, avoid riding until a qualified technician checks the bike.
