Electric Bike Payload Capacity: How to Read It

A posted weight number is easy to misread. Some riders treat it as the most they can weigh. Others treat it as free space for groceries. Electric bike payload capacity is neither of those shortcuts. It is the manufacturer's limit for that model, and the manual decides whether the rider, the cargo, the accessories, and the bike itself all sit inside it.

Book a free load consultation in Bend

Electric bike payload capacity is the maximum combined load the maker allows on that bike. Check whether the number includes the rider, cargo, accessories, and the bicycle. Segway lists the Myon at a 300-pound total payload, a 264-pound maximum rider weight, and a rear rack limit of 25 kilograms for goods only (Segway Myon specifications). Those are three different caps, not one.

A headline rating is not enough. Read the specification page and the manual, then match each number to the load it covers. The next section separates the total rating from the rider, the rack, and any passenger rule.

Shoppers in Bend hit this while comparing a commuter for the bike path with a heavier bike for dirt roads outside town. The same person can be inside the limit on one model and over it on another, with the same bags. That is why the comparison has to stay on one bike at a time.

What does electric bike payload capacity include?

Electric bike payload capacity is the manufacturer's maximum allowed load for one model. It may include the rider, cargo, and accessories. Some makers also count the bike itself. There is no single payload number for every e-bike. Use the manual for the bike in front of you.

Rider, cargo, and accessories all matter

When a specification says "maximum payload," do not read it as cargo space left over after the rider. The combined load may include:

• The rider's weight, including clothing and a pack.
• Bags, baskets, panniers, locks, and a child seat.
• Whatever those accessories are holding.
• On some models, the bicycle's own weight.

Accessory limits can be lower than the bike's overall limit. The Segway Myon has a total maximum payload of 300 lb (136 kg). Its rear rack is limited to 25 kg, for goods only, with the load centered and no overhang. Segway's Myon specifications also list a maximum rider weight of 264 lb (120 kg) and a bike weight of about 72 lb. Those figures are not interchangeable.

Does the bike's weight count?

Only the manual can answer that. Trek's Charter+ is a clear example of a system limit: 300 lb (136 kg) covers the bike, the rider, and the cargo together. In that case the bike's weight uses part of the rating. It is not extra room. Trek's Charter+ load guidance also lists a separate rear-rack rating of 60 lb (27 kg), which shows the gap between a whole-bike limit and an accessory limit.

Do not add or subtract the bike's weight unless the manual tells you the rating works that way. Look for phrases such as "maximum payload," "maximum system weight," or "bike, rider. And cargo combined." If the wording is unclear, ask the manufacturer or a shop before you ride with a heavy load. Going past either the overall rating or an accessory rating can change handling, braking, and how long parts last.

How do you compare two electric bike payload ratings?

Start with the total system weight or maximum payload. Then check for a separate rider limit. Last, look for a rack or accessory cap. Those figures answer different questions, so compare the same kind of number on each bike.

These Segway electric bikes show how far two ratings can sit apart.

Read each row as its own rating.

The higher number is not the better bike for every rider. The Myon's 300-pound figure is a total limit. Its 264-pound figure is a separate rider boundary. Cargo has to fit in whatever gap remains, and the rear rack still stops at 25 kg of goods. That rack is not a passenger seat.

The Xyber's 396.8-pound figure belongs to that model. It does not transfer to another e-bike, even one from the same brand. Segway also labels the Xyber for off-road use and for riders 18 and older. Two spec blocks list the bike at 146.4 lb and at 138 lb, so keep both figures until a current sheet settles it. For the lighter commuter, the Segway Myon commuter review covers how that bike is set up for Bend roads.

When you compare any two models, write the exact wording next to each number. Confirm whether it includes the bike, the rider, and the cargo. Then check the rack limit on its own. If the maker leaves the rider limit blank, do not fill the blank with the largest number on the page.

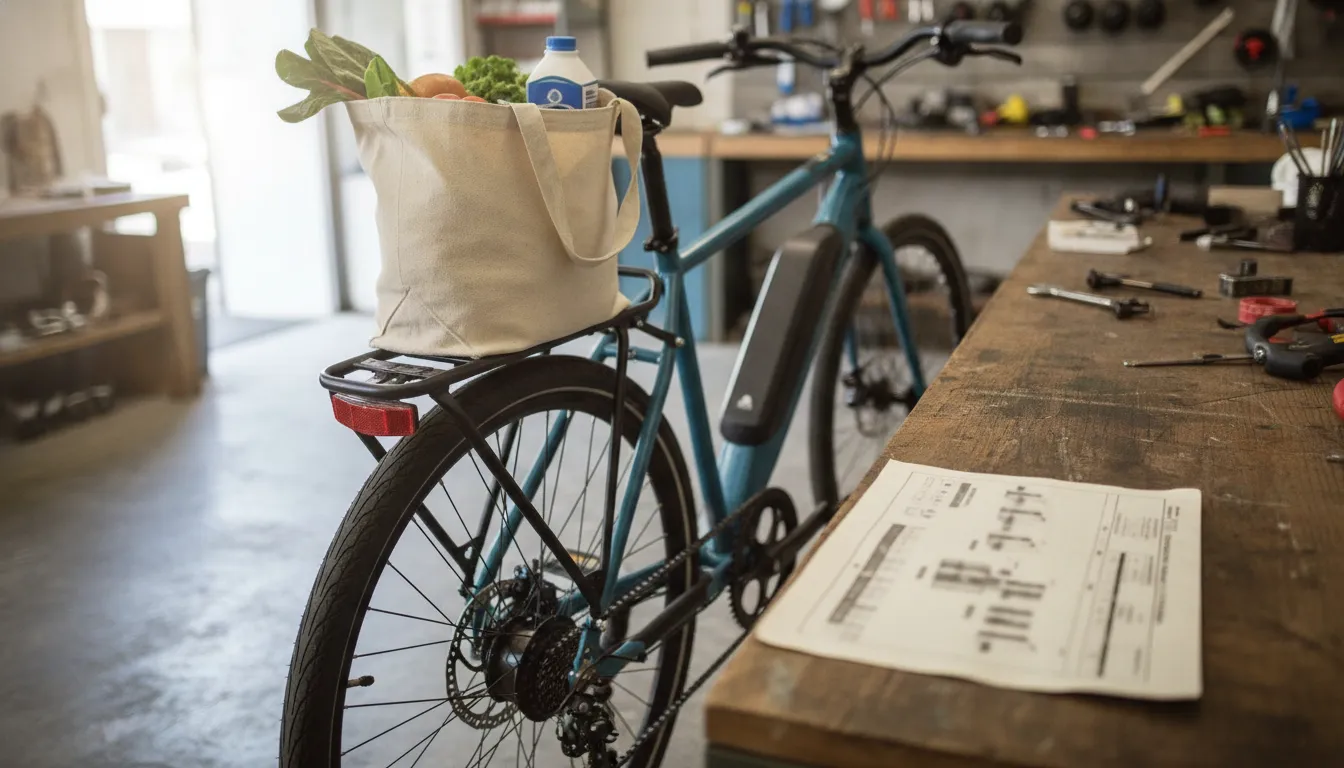

Does a rear rack limit count inside the total?

Yes. A rear rack rating is a separate cap inside the bike's total payload. It is not bonus capacity stacked on top. On the Segway Myon, the total payload is 300 lb. The rear rack is limited to 25 kg, about 55 lb. The load must be centered, it cannot overhang, and it is for goods only.

A 220 lb rider plus a full 25 kg rack load comes to about 275 lb. That is under the Myon's 300 lb total, but the rack is already full. More cargo does not go on that rack. A heavier rider has less room for cargo even when the rack itself could hold more. Both limits have to be true at the same time.

Segway warns that going past the rack limit can affect stability and braking, and may cause injury or damage. As a general pattern, not a rule, Cycling UK notes that many pannier racks are stamped for 20 to 30 kg. A touring setup on a standard e-bike is often closer to 45 to 50 kg of cargo plus the rider, and only when several bags share the load. That is one rider's experience. It is not a rating you can borrow.

Before you pick a model, use this electric bike buying checklist for the other specs that sit next to payload. Towing uses a different rating and is outside this article. A trailer hitch, a trailer brake, and the bike's payload are three separate questions.

When is electric bike payload capacity the wrong number?

A standard payload rating checks a rider-and-cargo combination on an ordinary e-bike. It is the wrong tool when you regularly carry children, a week of groceries, or work gear. That job belongs to a purpose-built cargo bike, with its own system capacity, passenger rules, and range.

Cargo bikes are designed around carrying loads, not around tolerating a bag on the way home. A rear rack on a commuter may allow goods and forbid passengers. A total rating may or may not include the bike itself. Read the manual for the exact model. Do not copy a number from a different product.

For the cargo-bike question, see how much an electric cargo bike can carry and the guide to cargo bike capacity, range, and passengers. If the load is smaller, a compact cargo bike can be easier to park, and it still has to meet the maker's stated limits.

What Oregon e-bike classes do and do not tell you

Oregon's e-bike classes describe motor assistance and the speed where it stops. They do not say how much weight the bicycle can carry. Under ORS 801.258, Class 1 assists only while you pedal and stops at 20 mph. Class 2 can move without pedaling and also stops assist at 20 mph. Class 3 assists only while you pedal, stops at 28 mph, and includes a speedometer. None of those lines is a payload number.

Federal rules create a similar mix-up. The CPSC's 16 CFR Part 1512 guidance describes a low-speed electric bicycle in a specific way. The motor is under 750 watts. The test rider weighs 170 pounds. On a level surface, motor-only speed stays under 20 mph. That 170-pound figure is a test condition. It is not a rider limit, and it is not a payload rating.

A large published figure still needs its label. Segway lists the Xyber at a 396.8-pound maximum payload and identifies it for off-road use by riders 18 and older. That figure is not a street e-bike standard, and it does not move to another model. When the trip involves people or a large load, compare the cargo bike's capacity. Passenger hardware, brakes, and expected range instead of stretching a commuter's electric bike payload capacity.

How should you check payload before a Bend test ride?

Before a ride in Bend, or before you order online, match the current limits to the gear you actually carry. Blog examples go stale. The specification sheet for the bike you will ride is the one that counts.

Write the numbers down before you leave the house. A rider at 200 pounds with 30 pounds of groceries is a different load from a rider at 250 pounds with a laptop bag. The sheet will not do that addition for you.

1. Read both limits. Find the total payload and the maximum rider weight. They are separate numbers, and neither is a universal e-bike rating.
2. Add your real load. Add body weight to the bags, child equipment, or other gear you plan to carry. Compare that sum with the total payload.
3. Check the rack cap. If cargo sits on a rear rack, confirm that rack's own maximum and how the load must be placed. The rack limit is often lower than the bike's total.
4. Confirm the current sheet. Ask Voltaire Cycles to check the manufacturer's current specification before you rely on a number from a blog or an older listing.
5. Bring the gear. A test ride with an empty bike does not show how the load sits. Bring the bags or the child seat you expect to use.

You can book a free electric bike consultation, shop electric bikes, or contact Voltaire Cycles in Bend at (844) 394-3809. Staff can walk through the sheet with you. They cannot raise a manufacturer's limit.

Call Voltaire Cycles at (844) 394-3809

Frequently Asked Questions

Does rider weight count toward electric bike payload capacity?

Yes, unless the manufacturer says otherwise. Treat payload as the rider, clothing, accessories, and cargo together. Trek defines the Charter+ total as the bike, rider, and cargo combined at 300 lb (136 kg). A separate rider maximum, such as the Myon's 264 lb, can be stricter than the total.

Does cargo on a rear rack count separately from the bike's total limit?

It counts toward the total, and the rack has its own cap. You have to stay under both. The Segway Myon rear rack is rated for 25 kg of centered goods with no overhang. The model's total payload is 300 lb (136 kg). Filling the rack does not create room beyond the total.

How do I check whether my loaded bike is within its limit?

Find the total payload or total system rating. Add the rider, locks, bags, and cargo. Compare that sum with the rating, then check any rack or basket limit on its own. Capacity is model-specific. Do not move a number from one e-bike to another, including the Xyber's 396.8 lb off-road rating.

What happens if an e-bike is loaded beyond its weight limit?

Extra weight can change handling, braking, tire and wheel loads, and how the motor feels on a hill. Segway warns that exceeding the Myon rack limit may affect stability or braking and can cause injury or damage. Reduce the load until both the total and the component rating are met.

Does towing weight count toward a bike's weight capacity?

Do not assume a trailer is covered by the bike's payload rating. Towing has its own hitch, brake, and handling limits. Check both the bike manual and the trailer manual before you tow. This article's math is for the loaded bike, not for a trailer behind it.
