Electric Bike Hitch Rack: Fit and Setup Guide

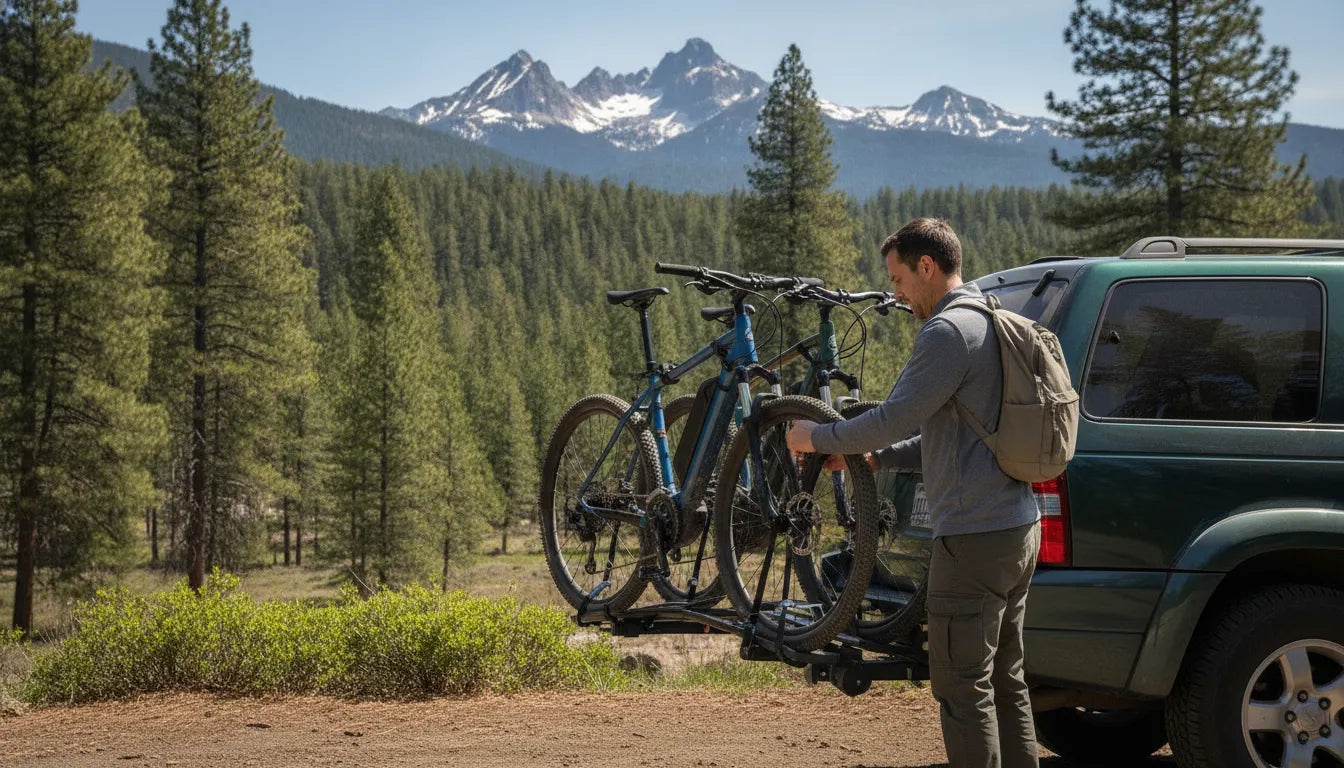

An electric bike hitch rack makes it easier to get from your driveway to a Central Oregon trailhead. But choosing one is not as simple as matching a rack to a hitch receiver. E-bikes can be heavier, longer, and harder to lift than standard bicycles. The carrier must support each bike, the combined load, the hitch, and the vehicle. This guide explains how to check fit, capacity, loading, security, and setup before your next trip.
Browse electric bikes at Voltaire Cycles before planning your transport setup.
For local riders, the best rack decision starts with the exact bike you own or plan to buy. Record its weight with the battery installed or removed as the rack instructions require. Then compare that number with the carrier's per-bike rating, total rating, tray dimensions, tire clearance, and hitch requirements. A careful fit check prevents a frustrating purchase and helps protect the bike on the road.
What makes an electric bike hitch rack different?
An electric bike hitch rack is a vehicle carrier that connects to a hitch receiver and supports bicycles on a platform, usually by the wheels. Unlike a light trunk rack or a hanging carrier, a hitch platform can provide a lower loading height, wider trays, and stronger support for heavier bicycles. That does not mean every hitch rack is suitable for every e-bike. The carrier still has a defined capacity, and the vehicle and hitch may have a lower limit.
E-bikes often combine a heavier frame with a motor, battery, wider tires, fenders, rear racks, and accessories. Those features change how the bike sits on a tray and how much force the vehicle experiences when the carrier moves over bumps. A rack that works well for a lightweight road bike may not be safe for an electric bike.
Platform racks generally support the tires with wheel trays and hold the bicycle upright with a ratcheting arm or another approved restraint. This wheel-first design can work well for step-through and carbon-free frames because it does not depend on a narrow top tube. However, the arm must contact an approved area, and the tires, fenders, frame, and battery must all clear the carrier.
The practical takeaway is simple: treat the rack, hitch, vehicle, and bicycle as one system. The lowest limit controls the setup. A strong rack cannot make an under-rated hitch safe, and a capable hitch cannot correct poor tire clearance or an unsecured bicycle.
How do you check electric bike hitch rack weight limits?
Weight capacity is the first safety check. Find four separate ratings before buying or loading an electric bike hitch rack: the carrier's per-bike limit. The carrier's total limit, the vehicle hitch's tongue-weight limit, and the vehicle manufacturer's limit for the hitch and carrier combination. Do not assume that a two-bike rack rated for a large combined load can carry two heavy e-bikes at the same time. Divide the total rating across the actual bikes and check each tray individually.
Use the real transport weight. If the rack instructions say to remove batteries, baskets, bags, or other accessories, follow those instructions and weigh the bike in that configuration. If the battery stays on during transport, include it. Add the weight of any approved accessory that remains attached. Estimates based on a product category or a memory of the bike's advertised weight are not enough.
- Write down the weight of each bike in its transport configuration.
- Compare each bike with the rack's per-bike limit.
- Add the bikes and compare the sum with the rack's total limit.
- Check whether a ramp, extension, or add-on changes the capacity.
- Confirm the hitch and vehicle tongue-weight rating with the vehicle documentation.
Pay attention to how far the load sits behind the hitch. A carrier creates leverage, and the effective load on the hitch can change as the distance from the receiver increases. A long extension may reduce capacity or require a specific calculation in the rack instructions. Never add an extension simply because the trays seem too close to the vehicle.
Capacity is not a substitute for a fit check. A rack can meet the weight requirements and still be wrong for a fat-tire bike. A low step-through frame, a full-suspension design, or a bicycle with a rear-mounted battery. Weight, geometry, and clearance must be checked together.
Will a hitch platform fit your e-bike?
Most electric bike hitch racks fit a range of bicycles, but no universal label guarantees a correct fit. Compare the rack with your bike's wheelbase, tire width, wheel diameter, frame shape, fenders, and accessory layout. Measure the bicycle rather than relying on a product name. Two e-bikes that look similar in a showroom can place the wheels, motor, battery, or frame tube in different locations.
Wheel and tire clearance
Measure the tire width at the sidewall and check the rack's tray range. Fat tires may need wider trays or dedicated cradles. Confirm that the wheel sits fully inside the tray and that the strap can cross the tire at the intended point. The strap should not ride on a spoke, rotor, valve, or sharp fender edge.
Wheelbase and tray spacing
A long e-bike may exceed the tray's wheelbase range. When carrying two bikes, compare the distance between trays with the handlebar width, pedals, saddles, and frame shapes. A rack can have enough weight capacity but still create contact between the bikes. Alternating handlebar positions may help, but it should not be used to force an incompatible fit.
Frame, battery, and fender clearance
Check where the rack's support arm contacts the bicycle. It should not press against a display, brake hose, cable housing, battery case, painted control, or a fragile fender. Some frame shapes require an adapter, while some racks are designed to hold the wheels without touching the frame. Follow the rack and bicycle maker's instructions for approved contact points.
For a bike with a rear rack, basket, child seat, or other cargo equipment, check whether the accessory must be removed before transport. The carrier's tilt and fold functions also need clearance from the handlebar, rear wheel, and vehicle. If the rack is difficult to install or the arm cannot sit naturally, stop and ask for a fit review instead of improvising with straps or padding.
Voltaire's electric bike rear rack guide covers accessories mounted to the bicycle. That is a different use from a vehicle carrier, but the same principle applies: fit comes before capacity. Local shoppers can bring their bike details to the Bend showroom for practical accessory guidance.
Is a wheel-mount rack better than a frame-mount rack?
For many e-bikes, a wheel-mount platform is the more straightforward starting point because it supports the bicycle at the tires and can avoid pressure on the frame. It is especially useful when the bike has a low step-through frame, an unusual tube shape, or a frame-mounted battery that leaves little room for a top-tube arm. The design still needs to match tire size, wheelbase, fenders, and the permitted contact points.
A frame-mount or hanging rack can be lighter and compact, but it may be harder to use with e-bikes. The frame arm must reach an appropriate section of the frame, and the weight can hang away from the vehicle. Step-through frames may need an approved adapter. Carbon frames, painted tubes, integrated batteries, and accessories can also make a frame contact point unsuitable.
- Wheel-mount platform: Supports tires and often suits varied frame shapes. Fit questions: Do the trays fit the tire width and wheelbase? Does the arm clear the frame and battery?
- Frame-mount platform: Can hold the bike without a high lift onto the frame. Fit questions: Is the contact point approved, stable, and clear of cables, paint, and accessories?
- Hanging frame rack: Can be compact and easier to store. Fit questions: Can it carry the actual bike weight, and does the frame shape need an adapter?
There is no single best support style for every rider. Choose the design that fits the specific bicycle and the way you load it. A wheel-mount tray may reduce frame-contact concerns, while a frame-support design may be appropriate when the instructions and bike geometry clearly match. When in doubt, a technician can help identify where the carrier should and should not touch the bike.
How should you load an electric bike onto a hitch rack?
Loading is where many otherwise good setups become difficult. A heavy e-bike can be awkward to lift high enough for a carrier, and a rushed loading process can damage a derailleur, rotor, fender, battery, or vehicle. Use a loading ramp if the rack supports one, remove only the components the instructions specify, and keep the bike under control from the ground to the tray.
- Park on a stable surface. Put the vehicle in park, set the parking brake, and choose level ground when possible. Avoid loading beside moving traffic or on a steep slope.
- Prepare the bicycle. Remove bags, baskets, bottles, or batteries only when the rack or bike instructions call for it. Keep loose parts together so they are not left at the trailhead.
- Set the ramp and tray. Confirm that the ramp is seated correctly and that the tray is open for the tire width. Check that the carrier is locked in its operating position.
- Walk the bike up slowly. Keep both hands on the bicycle and guide the wheels into the trays. Do not force the tire against the end of the tray or let the motor housing catch on the ramp.
- Center the bike. Place each wheel fully in the tray. Make sure the handlebar, pedals, and frame do not touch the vehicle or the second bicycle.
- Secure the approved contact points. Engage wheel straps and the support arm according to the rack instructions. The restraint should be firm without crushing a fender or pressing against a fragile component.
- Test before driving. Gently rock the bicycle and inspect the hitch pin, rack base, trays, straps, arm, and clearance. Nothing should slide, rotate, or contact the exhaust.
Do not use a bungee cord as a substitute for the rack's primary restraint. Extra straps can reduce movement when the instructions permit them, but they do not increase the rack's weight rating. If lifting is still difficult, ask whether a ramp, a different carrier, or a two-person loading routine is the safer choice.
Ask Voltaire Cycles about accessory fit and electric bike service in Bend.
How do you secure and protect e-bikes during transport?
A secure carrier keeps each bike attached to the rack, but protection also means preventing contact, theft, and weather exposure. Lock the rack to the hitch and lock the bikes to the carrier when the rack's system supports those functions. Use the correct lock path and do not let a cable rest against a sharp edge, brake rotor, spoke, or hot exhaust component.
Before leaving, inspect the following points:
- The hitch pin or receiver lock is fully engaged.
- The carrier is in its locked travel position, not a folded or tilted position.
- Each wheel strap is centered on the tire and tightened as instructed.
- The support arm is locked and is not pressing on a battery, display, cable, or fender.
- The bikes do not touch one another, the vehicle, the exhaust, or the ground.
- The license plate, tail lamps, and turn signals remain visible or are supported by the carrier's lighting and plate provisions.
- Any removable battery or accessory is stored according to the bike maker's guidance.
Stop after a short distance and recheck the setup. Temperature, vibration, and road movement can reveal a loose strap or a contact point that was not obvious in the driveway. Repeat the check after rough pavement and whenever the carrier is removed and reinstalled. Do not leave a loaded rack unattended for long periods if the bicycle security system is not designed for that use.
At the end of a trip, inspect the bike before riding. Look for a shifted wheel strap, rubbed paint, a bent fender, a loose accessory, or damage near the hitch. A problem that appears small can affect control or braking. If anything seems different, pause the ride and have the bicycle checked.
What should you check before buying an electric bike hitch rack?
Use this short checklist when comparing carriers. It keeps the decision focused on the bike and vehicle rather than on a rack's marketing label.
- Bike weight: What is the actual transport weight of each e-bike?
- Capacity: Does the rack meet both per-bike and combined limits?
- Hitch: Is the receiver size and tongue-weight rating compatible?
- Vehicle: Does the vehicle maker permit the planned hitch and carrier setup?
- Tires: Do the trays and straps fit the width and diameter?
- Wheelbase: Can the bicycle sit fully in the trays without overhang?
- Frame and battery: Do the support arms clear sensitive components?
- Two-bike spacing: Can both bikes be loaded without contact?
- Loading: Is a ramp available, and can you control the bike safely?
- Security: Does the rack provide the locks and attachment points you need?
- Lighting and plate: Will the carrier block required vehicle equipment?
- Storage: Can you remove, fold, or store the rack when it is not in use?
Take photos of the hitch receiver, the bicycle's side profile, tire width, and any rear accessories before asking for help. Those details make a remote fit conversation more useful. In person, a shop can also compare the bike with the rack, check loading height, and identify contact points before you commit to a carrier.
Where can Bend riders get help with rack and e-bike setup?
Transport decisions are easier when the rack is considered alongside the bicycle, accessories, and route. Voltaire Cycles of Central Oregon supports shoppers through the Bend showroom, online product selection, test rides, and multi-brand service. That combination is useful when a bike is heavy, has a wide tire, uses an integrated battery, or carries accessories that affect vehicle clearance.
Bring the bike's make and model, its transport weight, your vehicle and hitch details, and the number of bikes you want to carry. If you already own a carrier, bring its instructions or photos of the trays and support arms. The goal is not to force a particular rack. It is to identify a setup that matches the actual equipment and that you can load, secure, and inspect with confidence.
For customers outside Central Oregon, the same information helps the Voltaire team answer questions online. You can also use the heavy e-bike car rack guide as a related reference. This article keeps its fit checklist focused on the exact phrase electric bike hitch rack and the hands-on setup decision.
Frequently Asked Questions About an Electric Bike Hitch Rack
Do electric bikes need a special bike rack?
Many e-bikes need a carrier designed and rated for their actual weight, tire width, wheelbase, and frame shape. A standard rack may be under-rated or may not hold the bike securely. Check per-bike and total capacity, then confirm the hitch, vehicle, tray, and support-arm fit.
Should you remove the battery before putting an e-bike on a hitch rack?
Follow the bicycle and carrier instructions. Removing a battery may reduce transport weight and protect a removable component, but some setups specify a different procedure. Do not guess. Secure the battery separately when instructed, and include its weight if it remains on the bike.
Can two electric bikes share one hitch rack?
Yes, when the carrier is rated for the weight of both bikes and its tray spacing fits their dimensions. Check each bike's weight, the combined limit, tire clearance, wheelbase, handlebar position, and contact points. Load the heavier bike where the rack instructions specify.
Is a loading ramp worth using for a heavy e-bike?
A compatible loading ramp can reduce lifting and help you control a heavy bike as it reaches the tray. It does not increase capacity or make an incompatible rack safe. Confirm that the ramp is approved for the carrier, seats correctly, and is removed or stored as directed before driving.
Can I leave an e-bike on the rack during a long drive?
You can transport an e-bike when the rack, hitch, vehicle, and bike are all within their instructions and ratings. Inspect the setup before departure, after the first short stretch, and during stops. Protect removable components as directed, keep exhaust heat away from the bicycle, and do not treat a lock as a substitute for a restraint.
