Heavy E-Bike Car Rack: How to Transport Your Electric Bike Safely

Standard bike racks often fail when they carry more than thirty-five pounds per bike. Most electric bikes weigh between sixty and one-hundred pounds, which can snap a light carrier. You need a strong system to haul these heavy machines safely.Moving an electric bike requires more than just a strong arm. Many riders do not know that their current rack might break under a large battery pack. Learning about these tool limits is the first step toward a safe trip. Here is Why Heavy E-Bikes Need a Specialized Car Rack.

Heavy E-bike Car Rack: Why Heavy E-Bikes Need a Specialized Car Rack

Electric bikes have changed how people in Central Oregon explore the outdoors. From the steep paths at Mt. Bachelor to the loops near Cascade Lakes, these bikes make tough rides easy. But their size and weight bring new needs when it is time to drive to the trail. Most old bike racks were made for light road bikes that weigh 20 to 30 pounds. In contrast, many modern electric bikes weigh between 60 and 100 pounds. This big weight gap is the main reason you need a rack built just for the task.

The Danger of Overloading Old Racks

Most basic bike racks have a weight limit of about 35 to 50 pounds per bike. When you place a heavy electric bike on a rack like this, you exceed its safe limit at once. This can lead to metal stress where the rack arms or the hitch joint begins to weaken. Hanging racks are risky for heavy bikes. These racks hold the bike by its frame, which can put too much stress on the tubes. Since e-bikes have heavy motors and batteries in the middle, they tend to sway more than light bikes. This extra movement creates a force that can bend the rack or even damage your car.

If you are not sure if your current setup is safe, look for these warning signs:

• The rack bounces or sways in your mirror.
• You hear loud sounds when driving over bumps.
• The hitch pin hole looks stretched or worn.
• The bike tires sit too close to the ground when the rack is full.

Understanding Hitch Physics and Tongue Weight

The link between your car and the rack is the most vital point of failure. Most car hitches are rated by "classes" based on how much weight they can hold. A Class III hitch is common on many SUVs and trucks. It can usually handle a tongue weight of 500 to 600 pounds. This is the amount of force pushing down on the hitch. While that seems high, you must count the weight of the rack too. A premium hitch-mounted rack can weigh 50 to 80 pounds on its own. Add two 75-pound bikes, and you are already at 230 pounds. This weight sits far behind the rear wheels, which changes how your car turns and steers.

The size of the hitch opening also matters. Most heavy racks use a 2-inch receiver because it offers much more strength than a 1.25-inch version. Small hitches are prone to "hitch wobble," where the entire rack tilts from side to side. This movement can loosen the bolts that hold the hitch to your car frame. A rack built for e-bikes uses thick steel and strong welds to stop this wobble before it starts. If you have a small car, finding a reliable hitch rack option that fits your hitch class is vital for safety.

Safety Risks at Highway Speeds

The real test for any rack happens on the highway. At 65 miles per hour, wind push adds hundreds of pounds of extra force against your bikes. A rack that seems fine at low speeds can fail under the pressure of fast travel. If a rack snaps or a bike falls off, it becomes a deadly hazard for anyone driving behind you. The National Highway Traffic Safety Administration works to stop crashes by setting high rules for car parts. A failed rack is not just a loss of a bike; it is a major road safety issue. At Voltaire Cycles, we help riders in Bend choose racks that meet these high safety needs.

Using the right rack also protects your gear. High-end electric bikes often have thin paint or carbon parts. Old racks that use straps or frame clamps can scratch or crush these parts over time. Good platform racks hold the bike by the wheels, which is the safest way to carry a heavy load. This design keeps the bikes steady even on the bumpy dirt roads leading to Smith Rock or other local spots. When you use the right gear, you can drive with peace of mind knowing your bike and your car are both safe.

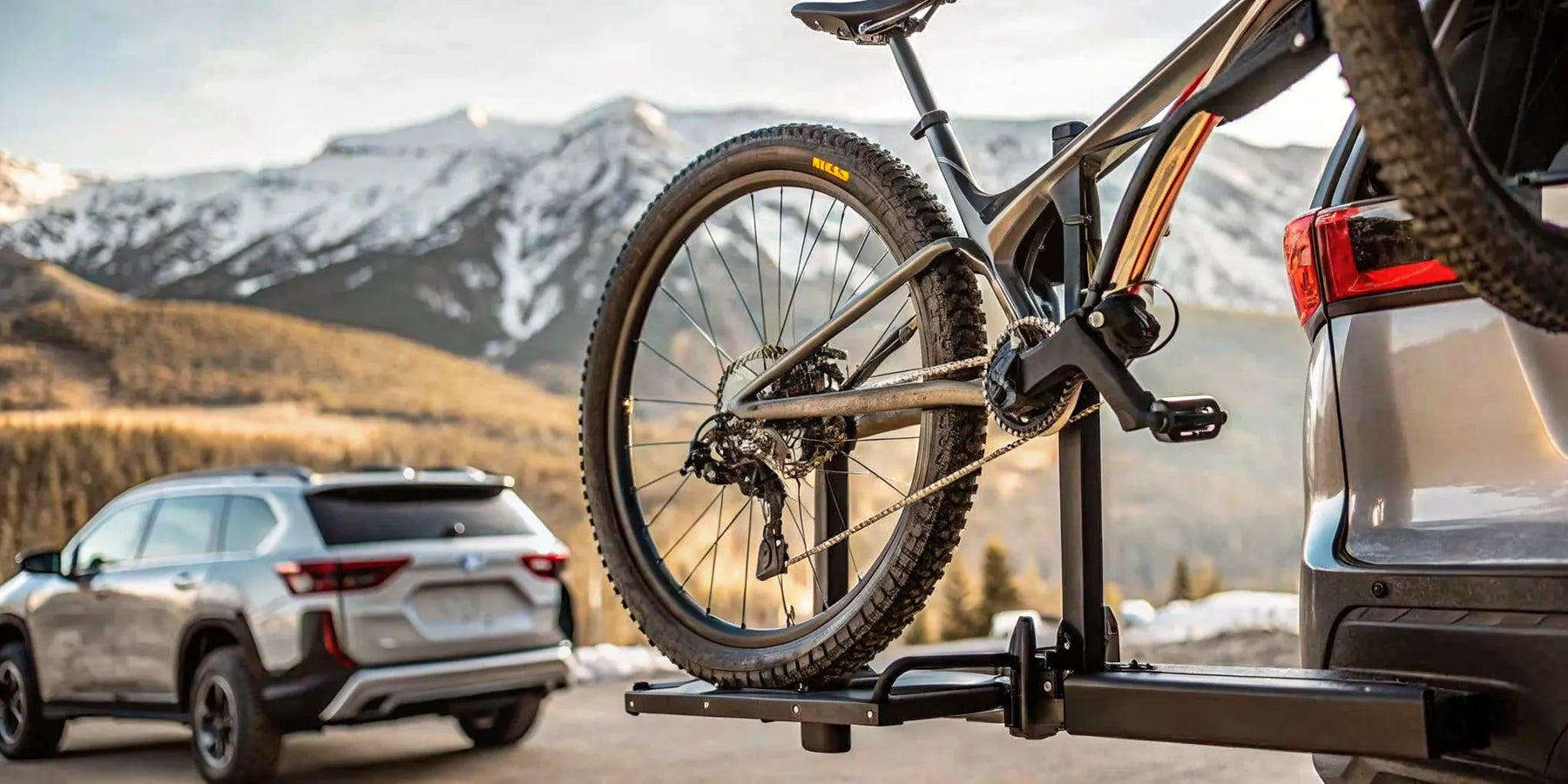

Hitch-Mounted Platform Racks: The Gold Standard

For owners, a heavy e-bike car rack is not just a luxury but a safety need. Platform racks are the gold standard because they support bikes from the wheels rather than the frame. This design keeps your heavy electric bike stable and protects the motor and battery from stress. Unlike trunk or hanging racks, platform models use sturdy wheel cradles and straps to lock each bike in place.

Why platform racks beat hanging racks

Hanging racks work for light road bikes, but they often fail with 60 to 100 pound electric bikes. These older styles can cause bikes to sway or bang into each other, which risks damage to the paint and parts. Platform racks sit low to the ground and have a flat track for the tires. This spread of weight is much safer for the vehicle hitch. If you need a secure hitch-mounted bike rack for heavy e-bikes, a platform system is the best way to go.

Most e-bikes weigh far more than the 35 pound limit of standard car racks. Modern electric models can hit 70 or 80 pounds once you add the battery and motor. Because of this, hitch racks are built to fit either 1.25 inch or 2 inch receiver sizes. For the best safety, experts suggest using a 2 inch hitch for any load over two bikes. You can learn more at the Voltaire Cycles service department in Bend.

Top heavy-duty e-bike racks compared

Choosing the right rack depends on how many bikes you carry and their total weight. High-quality racks often include ramps to help you load the bikes without heavy lifting. This is a key feature for riders who want to hit the trails at Smith Rock State Park or other local spots. According to National Park Service data, safe bike use helps protect park roads. The table below shows how top models compare in price and weight capacity.

Rack Model	Weight Capacity	Bike Count	Estimated Price
Hollywood Racks Destination E	140 lbs combined	2 Bikes	$749.99
MotoTote Mini	200 lbs	1 Bike	$499.00
Saris SuperClamp G4	160 lbs combined	2 Bikes	$649.99
MotoTote Mini Dual	350 lbs combined	2 Bikes	$949.00

Safety and hitch size compatibility

Before you buy, you must check your vehicle's tongue weight rating. A heavy-duty rack plus two electric bikes can weigh over 200 pounds. Most Class III hitches can handle this, but smaller cars may have limits. It is also wise to look for a reliable hitch rack for your e-bike that fits your specific receiver size. For a full check, stop by the Bend showroom for a custom rack fitting and consultation.

Key Specs to Check Before Buying a Heavy E-Bike Rack

Buying a car rack for heavy electric bikes needs a close look at technical facts. Plain bike racks often fail when they face the 60 to 100 pound reality of new e-bikes. You must match the rack to your bike and your car to stay safe on the road. Here are the main specs you need to check before you buy.

Individual and Total Weight Limits

The most vital number is the weight limit per bike. Most plain racks only hold up to 35 pounds. For e-bikes, you need a rack rated for at least 60 to 80 pounds per tray. For example, the secure hitch-mounted bike rack for heavy e-bikes from Thule handles the extra load of motor frames. Always check the total limit as well. Some racks can hold one heavy bike but have a lower limit for a second bike.

The National Highway Traffic Safety Administration notes that heavy racks can cause road risks if they fail. High-end racks like the MotoTote Mini can support one bike up to 200 pounds. If you plan to carry two bikes, look for a total capacity of at least 140 pounds. Going over these limits puts stress on the rack arms and the car hitch.

Vehicle Tongue Weight Capacity

The real limit is often your car rather than the rack. The tongue weight is the down force your car hitch can handle. You must add the weight of the rack itself to the weight of your bikes. A heavy e-bike rack might weigh 50 to 80 pounds on its own. If you have two 70-pound bikes, the total tongue load is 220 pounds.

Check your car manual for the max tongue weight. Most Class III hitches support 500 to 600 pounds, but small cars may have much lower limits. You can find more facts on hitch types through the U.S. Department of Transportation. If the total weight is too high, the back of the car may sag. This makes the front tires lose grip and changes how the car steers.

Receiver Size and Loading Ramps

Heavy hitch racks usually fit 1.25-inch or 2-inch hitch holes. A 2-inch size is much stronger and is the norm for most heavy e-bike setups. Make sure the rack you choose matches your hitch size without the use of a weak adapter. You can see a reliable hitch rack for your e-bike that fits both sizes at our Bend showroom.

Loading a 75-pound bike is hard on your back. Look for racks that have a loading ramp. A ramp lets you roll the bike into place instead of lifting it. This is a key feature for solo riders or those who visit trailheads often. Racks with a ramp reduce the risk of dropping your bike during the loading process.

How to Load a Heavy E-Bike onto a Car Rack Safely

Moving a heavy e-bike takes more care than a standard cycle. Most electric models weigh between 60 and 100 pounds. This weight can strain a car rack if you do not follow the right steps. Before you start, check your car hitch and the rack for any signs of wear. Look for rust, cracks, or loose bolts in the hitch slot and the pin. Making sure your gear is in top shape is a key part of road safety. Groups like the Department of Transportation state that all car loads must be secure before you drive.

Inspecting your vehicle and rack

A heavy e-bike car rack must handle a lot of force. Start by checking the weight limit of your hitch. Most Class III hitches can hold up to 600 pounds of tongue weight. This is plenty for a few bikes, but you must still take care. Inspect the rack trays and the locking arm to ensure they move freely. If you see any shaking, tighten the bolts before you load. A secure hitch-mounted bike rack for heavy e-bikes is made for this task, but only if it is set up right. If you are not sure about the fit, the Voltaire Cycles service department can help with an expert rack setup.

Using a loading ramp

Lifting a 100-pound bike can be hard on your back. Using a ramp is the best way to avoid pain. Many top racks now come with ramps to make the job easy. For example, MotoTote offers +Ramp bundles that range from $629 to $1,049. These bundles include a folding ramp that fits right onto the rack tray. Proper form is also key when moving heavy gear. You should keep your back straight and use your legs for power. Health experts at the CDC often suggest these simple moves to prevent strain when you lift or move heavy items.

1. Inspect the hitch slot, pin, and rack for rust or loose bolts before you load the bike.
2. Place your loading ramp against the rack tray at a low angle to keep the bike steady as it moves.
3. Walk the bike up the ramp slowly, using the front brake to control your speed and keeping your weight centered.
4. Seat the front wheel into the locking cradle and engage the ratcheting arm over the tire.
5. Secure the rear wheel with the built-in strap and add two more tie-downs on the handlebars for extra safety.
6. Give the bike a firm shake at every joint to ensure it is locked in place before you pull away.
7. Stop and check all straps after the first 10 miles of your trip to make sure nothing has shifted.

Securing the bike and straps

Once the bike is on the rack, you must lock it down. Start with the front wheel cradle. The ratcheting arm should sit close to the front fork for a tight grip. Next, pull the rear wheel strap through the rim and tighten it well. Most heavy-duty racks need more than just the built-in straps. Use two extra tie-down straps on the handlebars. Attach these to the sides of the rack for better balance. This stops the bike from swaying on bumpy roads. Taking these extra steps will protect your bike and your car from damage during the drive.

Final checks are the most key part of the work. A quick shake test shows if the bike is loose. Grab the bike frame and move it back and forth. It should feel like a part of the car. Do not forget to re-check the straps after you have been on the road for a short time. Central Oregon roads can be rough, and bumps can loosen even the best straps. If you need help choosing the right gear, visit the Voltaire Cycles showroom in Bend. Their team can show you how to use each part of your reliable hitch rack for your e-bike.

Transporting Your E-Bike on Oregon Road Trips

Central Oregon is a top spot for riders. Many people start trips from our Bend shop at 2755 NW Crossing Suite 113. You can drive from Bend to the Cascade Lakes Highway or the Mt. Bachelor trailheads in minutes. Smith Rock State Park and the Phil's Trail area are also close by. But taking a heavy e-bike on these trips needs the right gear. A secure hitch-mounted bike rack for heavy e-bikes keeps your ride safe on every mile.

Handling mountain grades

Oregon roads often have steep mountain grades. Driving up and down these hills puts extra stress on your car and rack. When you brake on a hill, the load can shift. This is why a heavy e-bike car rack must be rated for the full weight of your bikes. Always check that your hitch pin is tight and the straps are snug before you start a long climb or descent.

Most SUVs and trucks in Bend are built for these loads. But even a large vehicle has limits on how much weight its hitch can hold. It is vital to know your car's tongue weight limit. Most Class III hitches can support 500 to 600 pounds. This is more than enough for two Segway e-bikes and a strong rack. Small cars may have much lower limits. You can find these limits in your car's manual or on the NHTSA site for safety rules.

Safety in wet weather

Bend weather can change fast. Rain makes loading and unloading your bikes a bit tricky. Wet ramps are slippery. It can be hard to push a 70-pound bike up into place. We suggest adding grip tape to your loading ramp to help with grip. Also, check that your rack has a good finish to stop rust from road salt or rain. A high-quality rack will stay strong even when the trails get muddy.

Expert help in Bend

Picking the right rack can feel tough. We help riders in Central Oregon find the best fit for their car and bike. You can visit Voltaire Cycles to test-fit a rack on your SUV, truck, or car before you buy it. This ensures the rack clears your bumper and the bikes do not block your lights. Our staff can show you how to lock down your bikes so they do not move on your next trip to Smith Rock.

Rack Maintenance and E-Bike Care During Transport

A heavy e-bike car rack carries a lot of weight on long road trips. To keep your gear safe, you must care for the rack just like your bike. Check all bolts and hitch pins before every trip to make sure they are tight. Road shakes can loosen parts over time. This can lead to rack failure or bike damage.

Keep your rack in top shape

Moving parts on your rack need care to stay smooth. Use a dry lube on pivot points to prevent rust. Check your wheel straps and frame pads for cracks or wear. Sun and dirt can make plastic parts weak over time. If you see any wear, get new parts before your next trip. This helps you maintain a secure hitch-mounted bike rack for heavy e-bikes.

Care for your e-bike on the road

Taking an electric bike on a car needs extra steps to protect its parts. Always take off the battery before you load the bike. This makes the bike lighter and keeps the battery safe from heat or rain. Use a plug cover to keep dust and water out of the power ports while you drive. The National Highway Traffic Safety Administration notes that your rack must not hide your car lights or plate for safety.

Clean your gear after the ride

Dirt and road salt can hurt both your rack and your e-bike frame. Wipe down your gear after wet or muddy rides to stop rust. Look closely at the spots where the rack touches your bike frame. Using soft foam pads can help stop paint chips on long drives. If you are not sure about your gear, the Voltaire Cycles service department can do a full check. Good care keeps your gear ready for many years of fun.

Frequently Asked Questions

Can I use a trunk-mounted rack for a heavy electric bike?

No, trunk or roof racks are not strong enough for most e-bikes. These bikes often weigh between 60 and 100 pounds. Standard racks have much lower limits. You should use a heavy-duty, hitch-mounted platform rack instead. This style holds the bike from the bottom. It keeps your car safe and prevents the rack from breaking while you are on the road.

Do I need a special hitch rack for a fat-tire electric bike?

Yes, fat-tire bikes often need wider wheel trays. Many standard e-bike racks are built for tires up to three inches wide. If your bike has tires wider than four inches, you must choose a rack with larger trays. You can also buy a fat-tire kit. Racks like the Hollywood Racks Sport Rider are made to handle these wide tires safely and keep the bike steady.

How do you secure heavy e-bikes to a hitch rack?

Use a mix of frame clamps and heavy straps. Most platform racks use a ratcheting arm to hold the front wheel or frame. You should also use at least three extra straps. Place two on the handlebars and one on the rear wheel. This stops the bike from swaying. It is very important when you drive on rough Central Oregon roads or fast highways.

What is the weight capacity I should look for in an e-bike rack?

Look for a rack that can hold 60 to 80 pounds per bike. If you carry two e-bikes, the rack should have a total limit of about 160 pounds. According to The Mountain Weekly News, many modern e-bikes weigh up to 100 pounds. You must also check your car hitch class. A Class III hitch is often needed for these heavy loads to prevent the rack from failing while you drive.
