UBCO KXH Power Supply


Built to handle the mud and dust. Provides up to 75 miles of travel between charges. Compatible with all 2X2 Work and Adventure Bikes.

Global Certification
KXH is the first globally certified portable power supply that also operates a homologated vehicle class. UN38.3 certified to provide safe operation, use and transit.

Durable sealed alloy case and ports
The fully insulated IP66 rated sealed alloy case is fully water and dust resistant. Ports are sealed. A solid work horse, the lithium ion power supply delivers incredible capacity of up to 3100W.

Battery Management System (BMS)
Protects the battery from operating outside its safe operating area, monitoring its state, calculating and reporting data.

Safe operation
Charger detect disables the bike when charging.

Ergonomic & secure
For security, KXH locks into the bike. Integrated handles make it easy to take in and out.

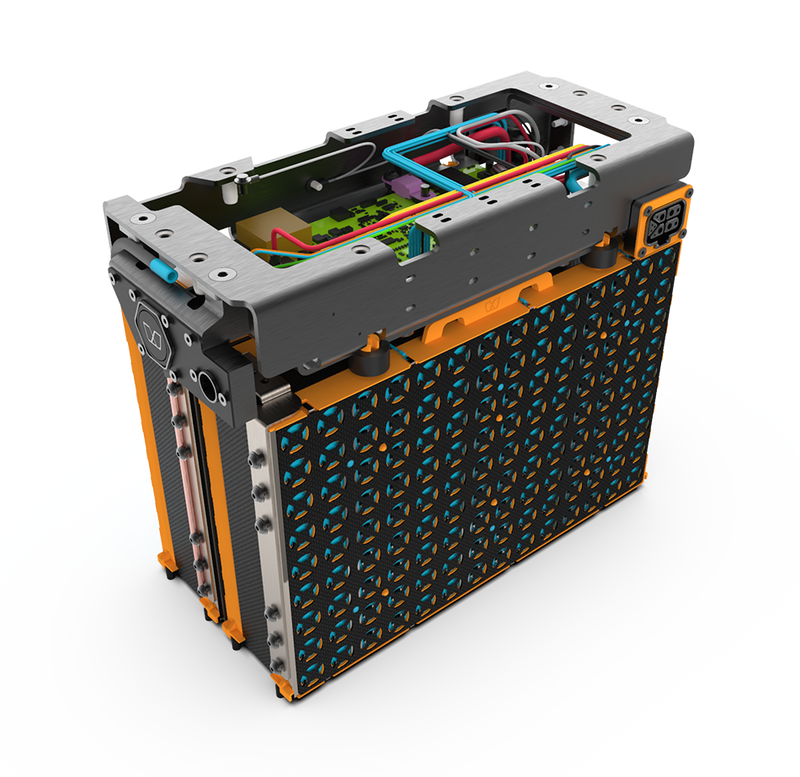

High performance cells
Contains 3400mAh ultra high longevity lithium ion cells mounted into specially designed cell holders. Nominal voltage 50.4V and peak current 120A.


UBCO developed KXH from the ground up. From the physical engineering structure, to the hardware, firmware and software.
We’ve increased battery cyclic longevity by at least 30% and improved the design for disassembly, creating a more durable product with a longer life and easier end-of-life management.

Active safety measures include the Battery Management System (BMS) that protects the battery from operating outside its safe operating area.

Passive safety features include IP66 environmental rating, as well as numerous venting fusing, pressure and flame protection measures.



Length: 300mm | 11.8”
Depth: 150mm | 5.9”
Height: 290mm | 11.4”
KX2.1: 14kg | 30.6lbs
KX3.1: 18kg | 39.6lbs


KXH multiple voltage platform.
Nominal voltage: 50.4V
Continuous current: 80A
Max current: 120A
3400mAh ultra high longevity lithium ion


KX2.1: 2100W
KX3.1: 3100W

UBCO Dual Safety System

Active safety:

  • UBCO ‘Scotty’ battery management system (BMS).
  • Real time performance and safety monitoring.
  • Temperature monitoring.
  • Intelligent (SOC).
  • Over-current and over-voltage protection.
  • Surge protection.
  • Cell balancing.
  • Plug detection.
  • Overcharging protection.

Passive safety:

  • IP66 rated sealed alloy enclosure.
  • Cell level CID.
  • Vented enclosure with venting pathways.
  • 3400mAh high safety factor INR (LiNiMnCoO2) 18650 lithium ion cells.


10A alloy fast charger.
Charger detect disables the bike when


IP66 rated.
Sealed alloy case structure.
Flexible cell configuration.
Waterproof connectors.


CAN bus communication integrated.
Fixed 100KB S-interface.
3.3V operation voltage remote frame.
