-BikeKit™ 36v10ah Li-ion E-Bike Battery Pack

INCLUDES 2.5 AMP CHARGER

These Li-ion batteries are our longest lasting E-Bike Battery, and have a longer lifespan than other types of Lithium batteries. They typically last 2-4 years. They are also our lightest batteries - at half the weight of lead-acid batteries, they are easy to carry and include an integrated carrying handle. The battery is protected by an aluminum case and key lock system.

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via UPS HazMat and require a signature for delivery. You may receive your kit, battery and possibly the battery rack (if applicable), on separate days.

BATTERY SPECS:

Top Speeds: 20MPH w/ 500w Geared "Performance" Motor / 15MPH w/ 500w Direct-Drive "Heavy duty" and Trike Motor
Range: 12-24 Miles (Rider Weight, Rider Input and Terrain Contingent)
Charging Time: 10ah pack = 4hrs / 2.5Amp Charger = 2.5 amps charged per hour
Nominal Voltage: 36v
Nominal Capacity: 10Ah (0.2C)
Battery Energy: 360Wh (Approx.)
Dimensions: 11.7" (297mm) x 6" (148mm) x 2.7" (68mm) (Approx.)
Total Weight: 7.7lbs/3.5kg
Cell Assembly: 18650-3.6v-10S5P
Life Cycles: 800-1000 cycles
Max. Continuous Discharge: 22.5A
BMS Protection Current: 30A
Discharge Cut-Off Voltage: 30v
Max. Charge Voltage: 42.5v
Inner Resistance: <= 130mΩ
Charge Time: <= 3.3 hours
Operation Temperature Range: Charge: 0’C---45’C / Discharge: -20’C---60’C
Storage Temperature: 0’C---40’C (Extended Storage: 15’C-25’C;)
Battery Case Material: Aluminum
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Manufacturer: Electric Bike Technologies

TerraTrike

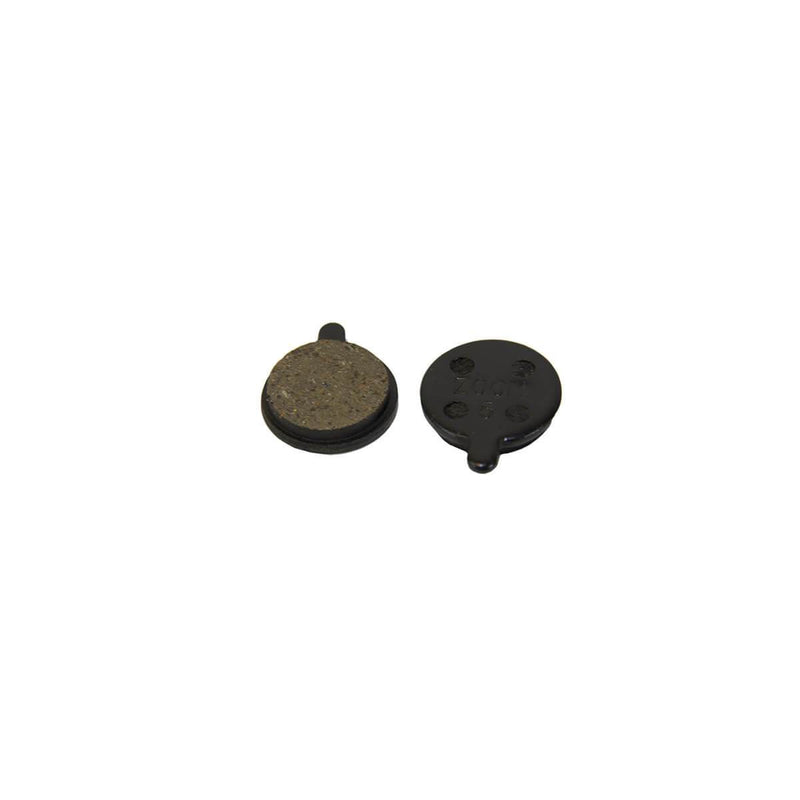

TerraTrike Brake Pads - Zoom
