Performance E-Bike Conversion Kit- Lithium - Front Wheel - 20MPH
E-BikeKit™ Front 500w Geared Hub Motor Conversion Kit
with 36 Volt Li-ion Battery Pack and Charger
The E-BikeKit 500-1000w geared conversion kit is powered by an internal 5:1 planetary gear hub motor with clutch. The clutch in the geared motor offers zero drag when pedaling and not engaging battery power. This motor is more efficient, resulting in increased range (especially with "start/stop" riding), has more starting torque, and has greater hill-climbing ability than a Direct-Drive motor of equal power rating. The motor is also smaller in diameter for increased stealth and 3.4lbs lighter than the 500w direct-drive.
Who's it for? This premium electric bike conversion kit system is for those that want the best of the best in performance, efficiency, weight and stealth. There is a 300lb total load limit so if you plan on more than that, look to a heavy-duty system.
Watts (Nominal/Peak): 500-750w (EBK 22amp controller)
Top Speed: Approx. 20 MPH @36v in 26" wheel
Range: 10-44 Miles *(see battery chart)
Charge Time: 3-5hrs (0-100%) (depending on battery choice)
Weight: 14.2lbs (6.44kgs)
Stealth Factor: High
Note: geared 500w “Performance” Motors feature an internal clutch to reduce drag, and can not read speed or mileage when not in use.
Li-ion batteries provide a high level of performance for the duration of each discharge (unlike seal lead-acid where performance is diminished 1:1 as the pack is emptied). Li-ion batteries have a much higher power to weight ratio than lead-acid and 5-8 times the number of charge cycles (how many times a rechargeable battery can be charged from 0-100%). The li-ion option costs more initially ,but over time, the "cost-per-cycle" is about half the cost of lead-acid. Li-ion packs also require less care as they can be left partially charged, and do not require immediate charging after each use. All batteries MUST be properly cared for during storage.

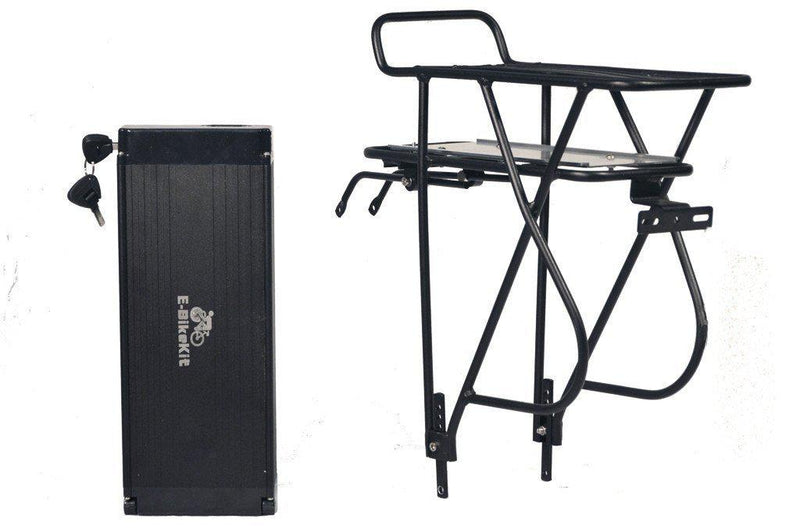

Battery Choice: We offer 3 battery packs for this kit - the 9ah Li-Ion Shrink Wrapped battery is the lightest and smallest, at just 5.8lbs. The 20ah Li-Ion Shrink Wrapped battery is the longest lasting, with a 20-44 mile range. The 10ah Li-Ion Aluminum Case battery sports a rugged enclosure, carrying handle, and locks in place with a key.
|36v 9ah Shrink Wrapped||4.4lbs||10-22||Battery bag with velcro straps (included, rack not included)||Base Cost|
|36v 10ah Aluminum||7.7lbs||12-26||Rear Rack (included)||+$140|
|36v 20ah Shrink Wrapped||10.6lbs||20-44||Battery bag with velcro straps (included, rack not included)||+$400|
Choosing Your Wheel Size: You can find your wheel size written on your tire. Available size options for this conversion kit are: 16", 20", 24", 26", 700c & 29er. Acceptable tire widths for the E-BikeKit rims: 1.15"(29mm) - 2.25"(57mm).
Learn More: Front vs Rear Wheel / Compatibility / Pedal Assist Compatibility
Note: our kits include parts to fit a wide variety of bikes, but do not fit every bike without modification or extra parts. Our representatives are available to help with compatibility questions and make recommendations on additional parts that you may need.
Helpful Resources: Installation Videos / Owner's Manuals
Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via FedEx Hazmat and are require a signature for delivery. You may receive your kit, battery and possibly the battery rack (if applicable), on separate days.
Brand: Electric Bike Technologies
Type: Internally Geared (brushless, disc brake compatible)
Power: 500w nominal / >750w@36v / >1000 @48v
Max Torque: 75N-m @36v / 84N-m @48v
Max RPM: 259 @36v / 320 @48v
Cable: 8" axle exit, 3-phase / 5 hall effect
Connector: Round 8-pin 13/32" (10.4mm)
Weight: 9.4lbs (4.26kg)
Nominal Voltage: 36v
Nominal Capacity: 9Ah / 10Ah / 20Ah (0.2C)
Battery Energy: 378Wh / 420Wh / 840Wh (Approx.)
Dimensions: See table
Total Weight: 4.4lbs / 7.7lbs / 10.6lbs
Cell Assembly: 18650-3.6v-10S 4P / 5P / 10P
Life Cycles: 800-1000 cycles
Max. Continuous Discharge: 20A / 22.5A / 30A

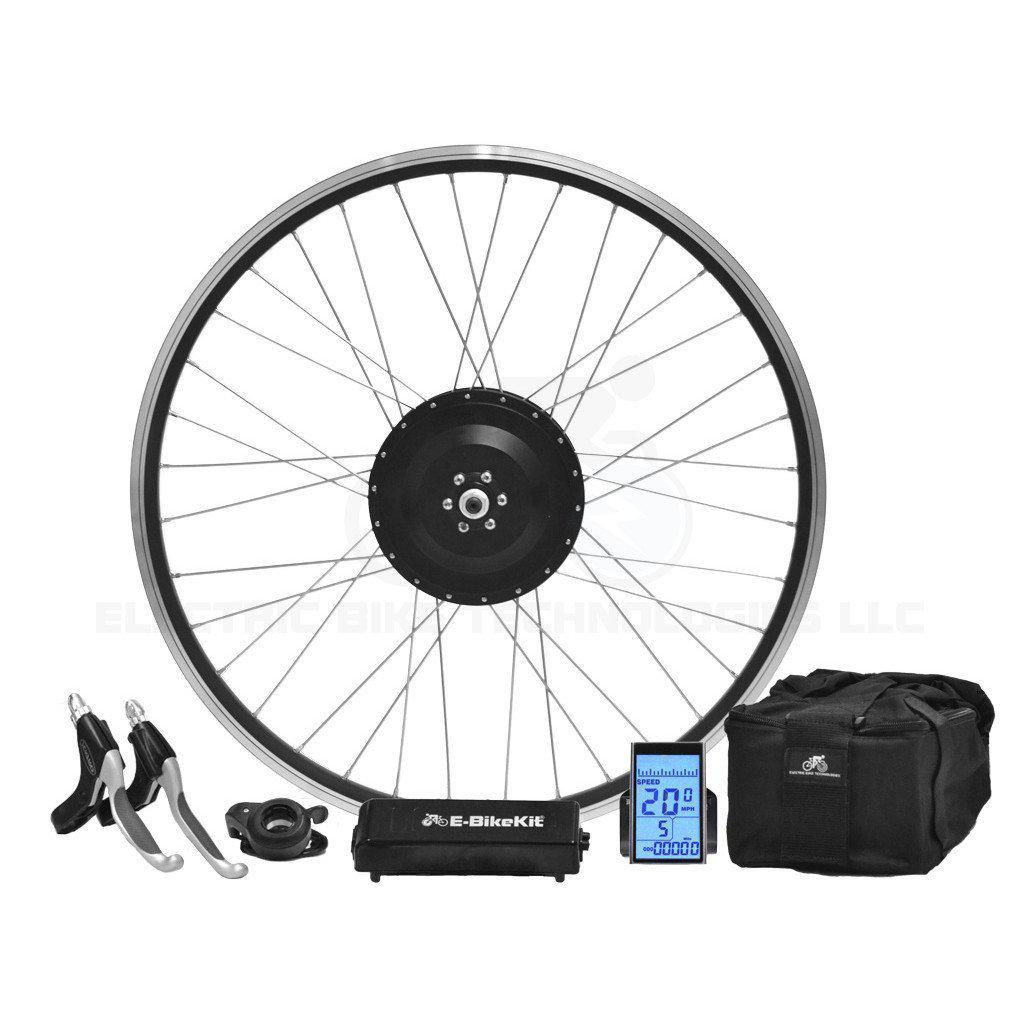

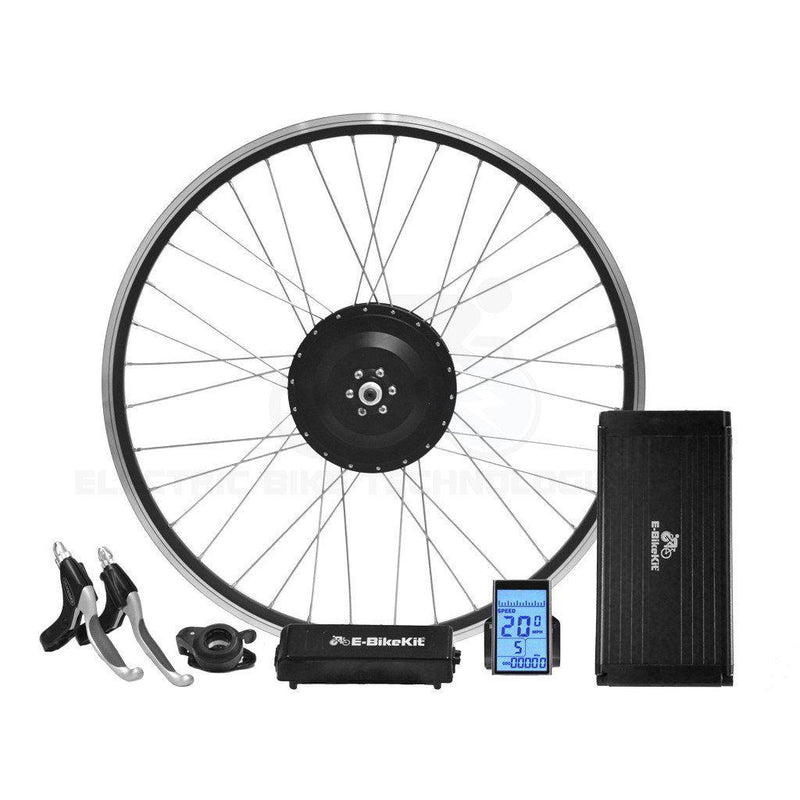

Every E-BikeKit conversion kit comes with all of the parts you'll need for your conversion.
1 x USA hand-built wheel w/ disc-brake compatible hub motor
1 x 36/48V compatible 22amp 12FET controller
1 x Programmable LCD Dashboard
1 x PAS 12-magnet Split Disc
1 x PAS Sensor Left side mount (right by request)
2 x Throttles (1 Thumb & 1 Split-Twist)
2 x E-Brake handles (left & right)
1 x Motor cable
1 x Accessory cable
1 x Battery wire harness (kits w/o batteries only)
1 x Freewheel (rears only)
1 x Battery
1 x Battery charger
1 x Owner's manual w/ installation guide
***Zip Ties, c-washers & torque arms in every kit!
BMS Protection Current: 30A / 30A / 40A
Discharge Cut-Off Voltage: 30v
Max. Charge Voltage: 42v
Inner Resistance: 190mΩ / 130mΩ / 180mΩ
Charge Time: <= 3 hours
Operation Temperature Range: Charge: 0’C---45’C / Discharge: -20’C---60’C
Storage Temperature: 0’C---40’C (Extended Storage: 15’C-25’C;)
Battery Case Material: Blue PVC Heatshrink / Aluminum / Blue PVC Heatshrink
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Limited Warranty: 1 Year
Manufacturer: Electric Bike Technologies
**System includes battery carrying rear rack.
