MAGURA MT5E E-BIKE DISC BRAKE
MAGURA MT5E E-BIKE DISC BRAKE
E-BIKE READY

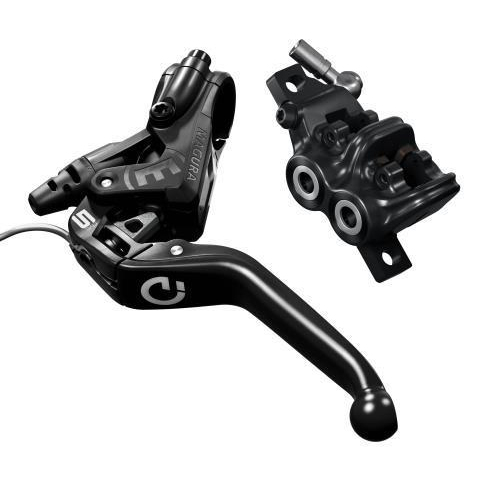

Designed specifically for E-bike use, the Magura MT5e E-bike Disc Brake is a premium, four-piston brake with an integrated lever for controlling the brake light and cutting the electric motor. Magura optimized The MT5e bike brakes to be used with Magura’s new MDR-C or MDR-P rotors. This allows for increased braking power that is able to hold up to the rigors of modern E-bike riding.The MagnetiXchange magnetic pad system allows for easy pad changing when it is time to replace used brake pads. A two-finger aluminum braking lever is comfortable, durable and features a reach adjust for a customized feel. Magura used their super-lightweight, Carbotecture housing, which uses impact-resistant carbon fiber layup for a stiff, strong and lightweight brake that weighs in at just 275 grams. The Magura MT5e E-bike Brake can be mounted on the left or right side and can be used as a front or rear brake.
FEATURES
- Carbotecture housing
- Two-finger aluminum lever with reach adjust and switch for motor and brake light
- Four-piston caliper
- MagnetiXchange system allows for easy pad change
- Optimized for use with Magura Storm HC, MDR-C or MDR-P rotors (not included)
- BRAKE SOLD INDIVIDUALLY, CAN BE USED FRONT OR REAR
| LEVER MATERIAL | Aluminum |
|---|---|
| CALIPER MATERIAL | Carbotecture |
| ROTOR SIZE COMPATIBILITY | 203mm, 220mm |
| ADJUSTABLE REACH LEVER | Yes |
| BRAKE CALIPER MOUNT TYPE | Post Mount |
| HOSE LENGTH (FRONT) | 2200mm |
| HOSE LENGTH (REAR) | 2200mm |
| FLUID TYPE | Mineral Oil |
| PAD COMPOUND | Semi-metallic |
| NUMBER OF PISTONS | 4 |
| ROTOR INCLUDED | No |
| INTENDED USE | E-bike |
| WEIGHT | 275 g |
