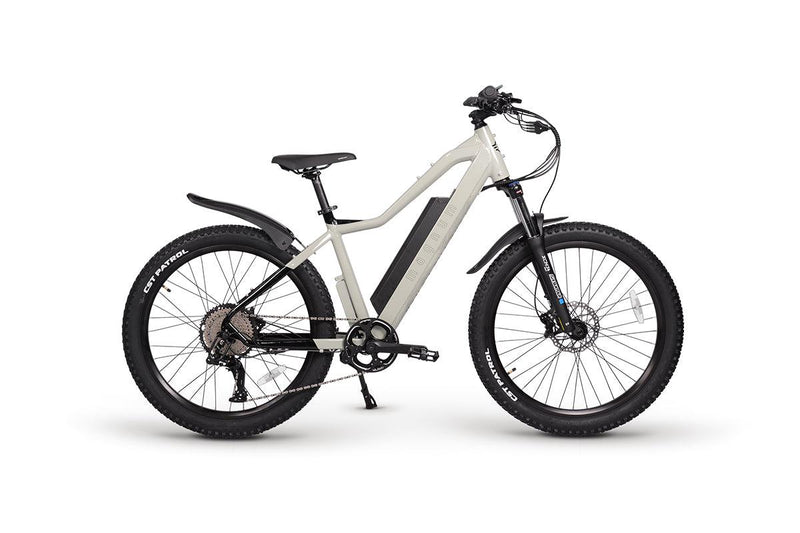

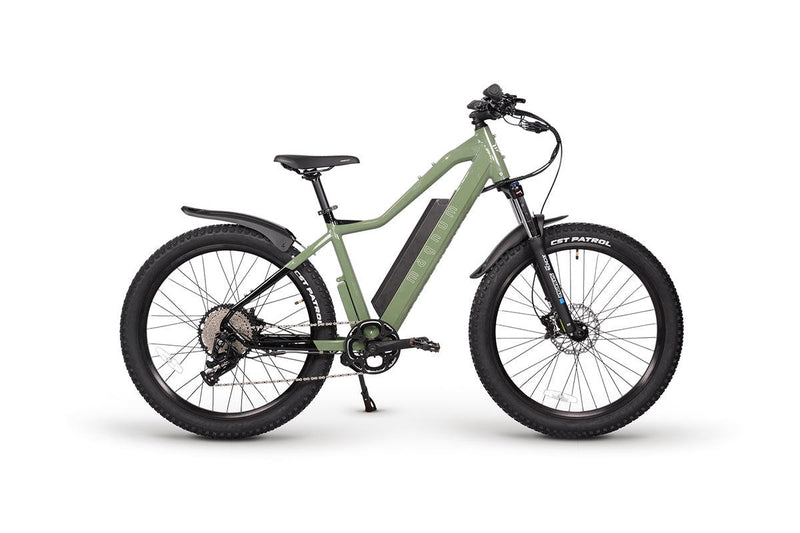

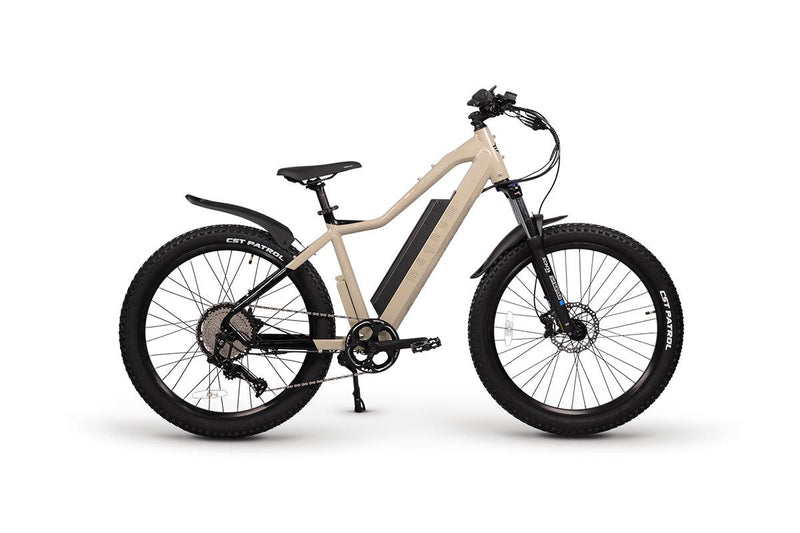

Magnum Peak T5

by magnum
Original price $2,699.00 - Original price $3,349.00
Original price
$2,699.00
$2,699.00 - $3,349.00
Current price $2,699.00

The Peak T5 has a torque pedal assist sensor that works in tandem with the rider for a more energy efficient ride (saving battery power). The 1×11 wide range drive train eliminates the front derailleur streamlining the bike and decreasing weight. These features powered by a 500W 48V power system with a top speed of 25 MPH make the Peak T5 an ideal choice for trail riding.

Description

Model:
Magnum Peak T5
Body Position:
Forward
Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1
Warranty:
One Year Limited Warranty
Max Load:
265lbs

ELECTRONIC DETAILS

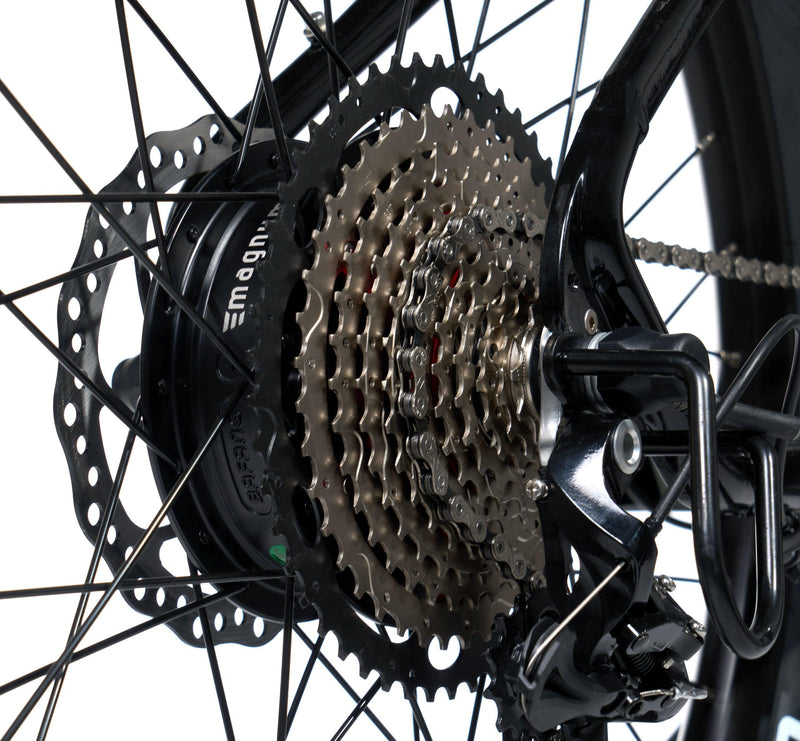

Motor Type:
Bafang Rear Hub Motor
Motor Output:
48v 500w

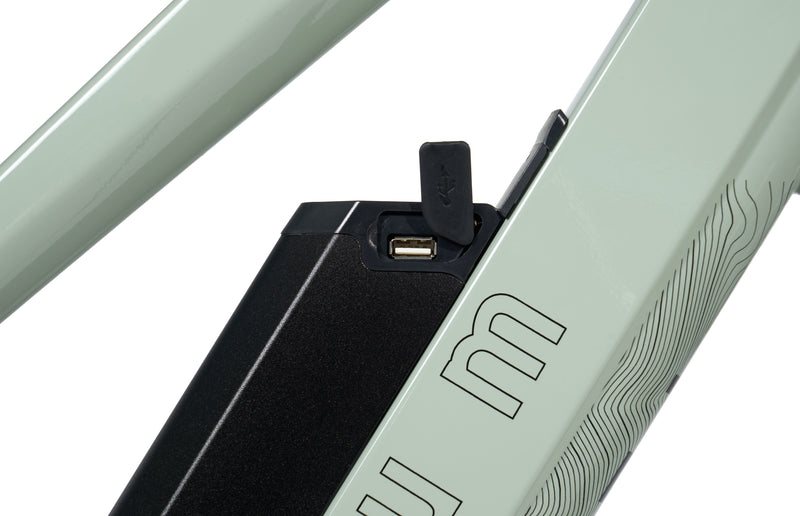

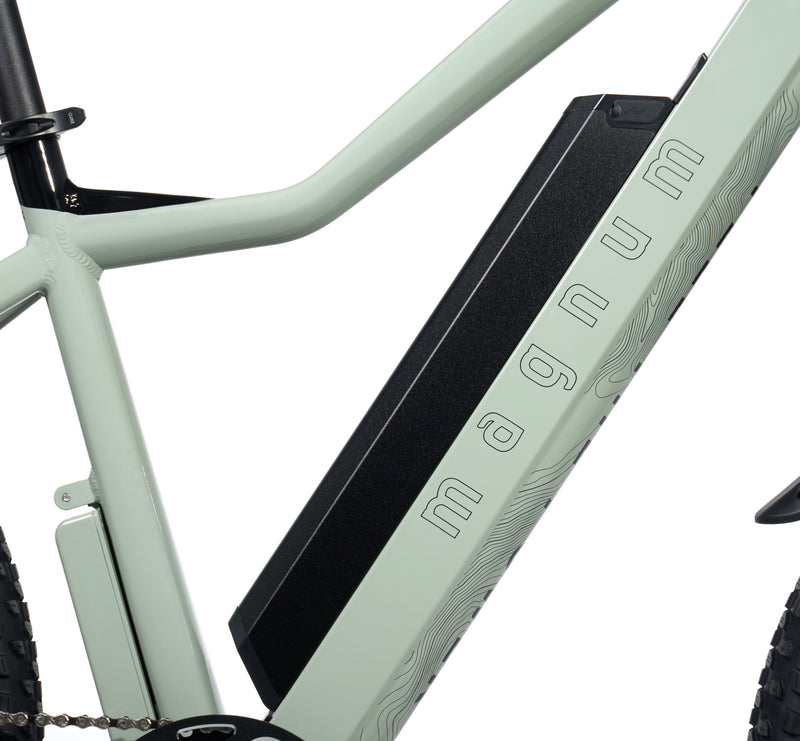

Battery Voltage / Amp Hours / Watt Hours:
48v / 15Ah / 720Wh
Battery Chemistry:
Lithium-Ion
Estimated Charge Time:
7.5 Hrs
Estimated Min And Max Range:
40 To 60 Miles (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)

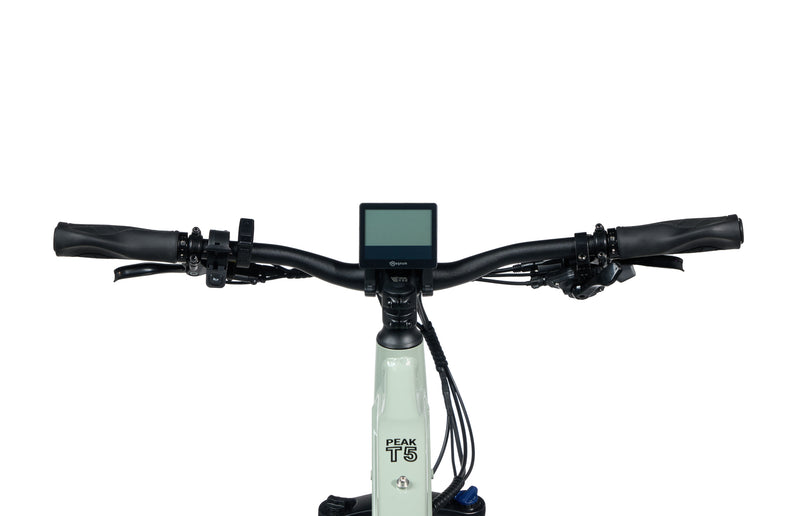

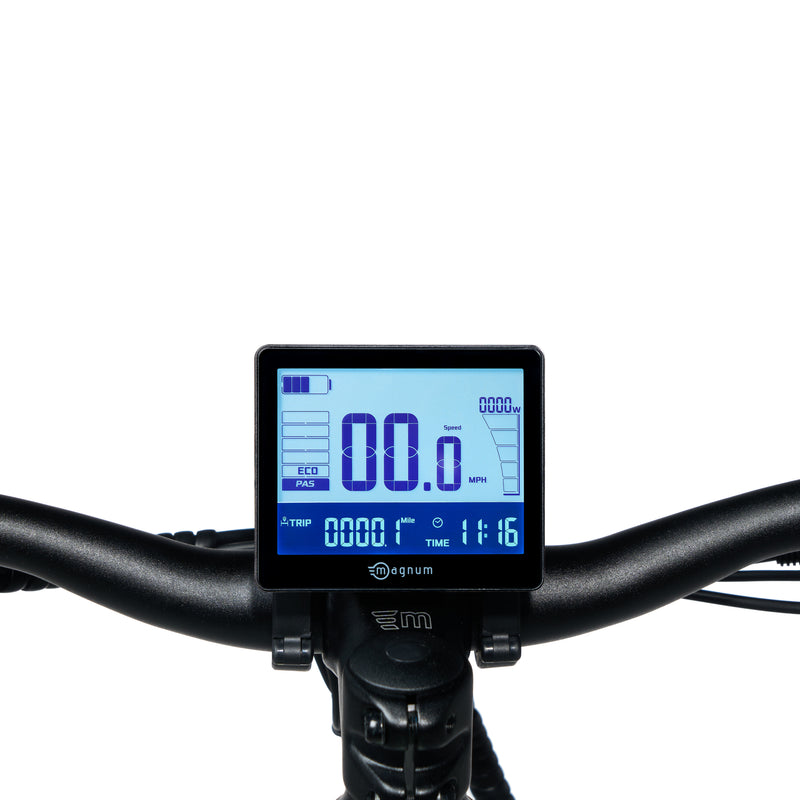

Display Type:
Magnum Branded Velofox, 3.5″ Diagonal, Fixed, Monochrome, Backlit LCD
Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Modes:
Torque Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed:
25mph With Pedal Assist, 20mph Throttle Only

BICYCLE DETAILS

Total Weight:
60lbs
Battery Weight:
9lbs
Frame Type:
High Step
Frame Material:
6061 Aluminum Alloy

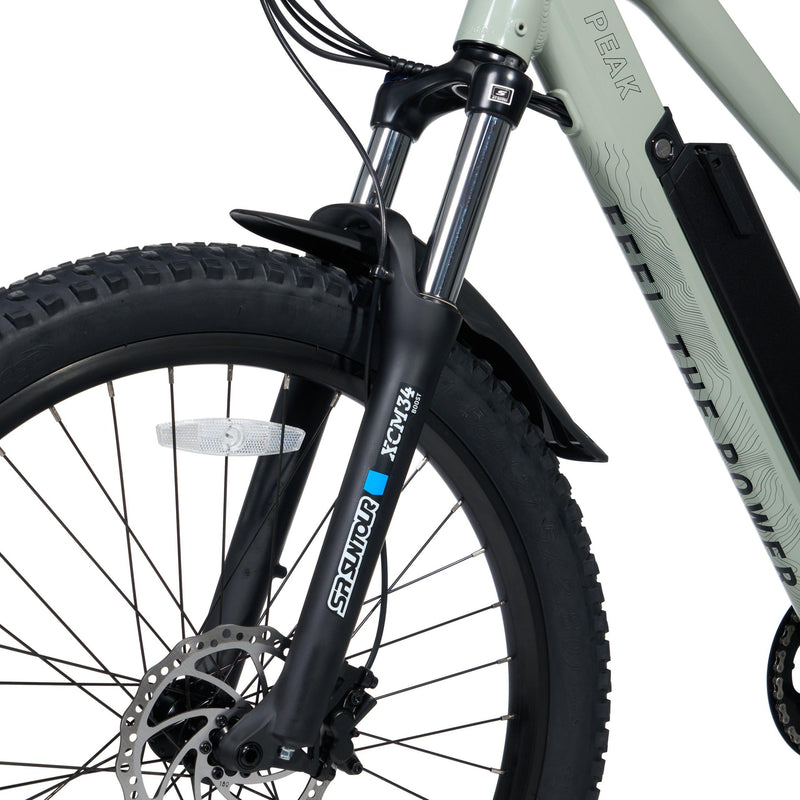

Fork Details:
Sr Suntour XSM34 Boost
Attachment Points:
Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses, Headtube Bosses
Gearing Details:
11 speed Rear Derailleur, 11-50t Rear Cassette
Shifter Details:
11 speed
Cranks:
Prowheel 42t chainring 170mm crank arms
Pedals:
Wellgo Aluminum Platform
Stem:
60 mm Length, Aluminum Alloy

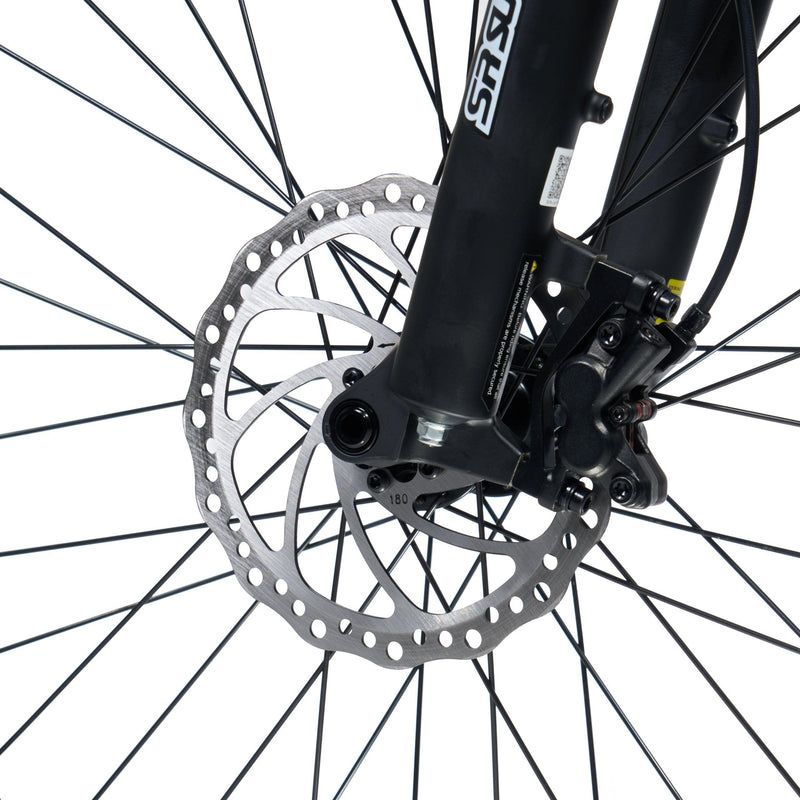

Brake Details:
4-Piston Hydraulic Brakes

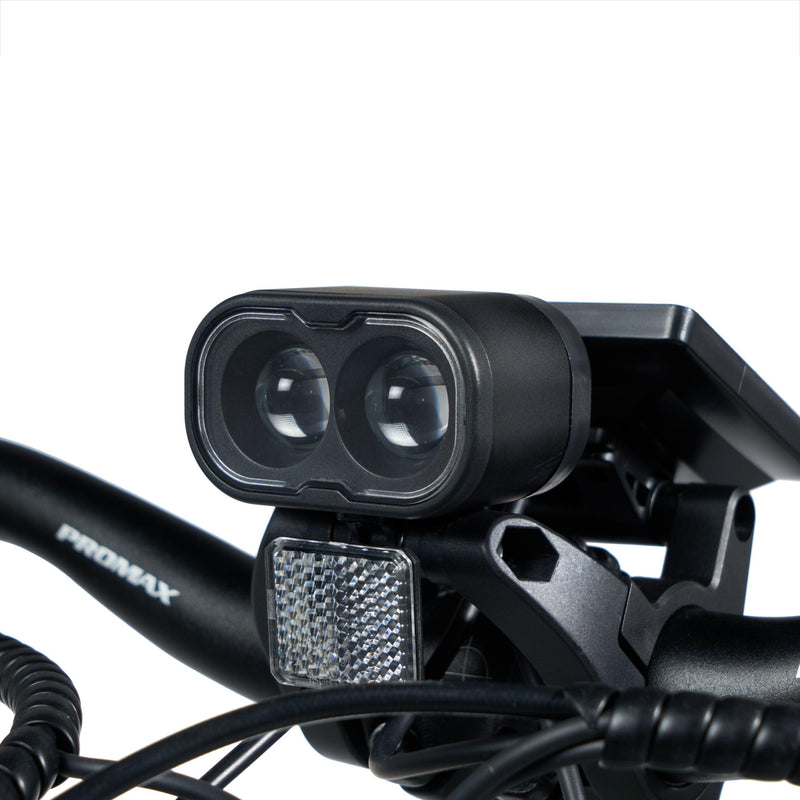

Lights:
Integrated front light controlled by display.
Grips:
Ergonomic Black Rubber
Saddle:
Selle Royal Essenza+
Seatpost / Seatpost Dimensions:
Promax, 30.4
Fenders:
Front & Rear MTB-style
Rims:
27.5″
Tires:
CST Patrol, 27.5″ X 2.8″
Wheel Size:
27.5″
