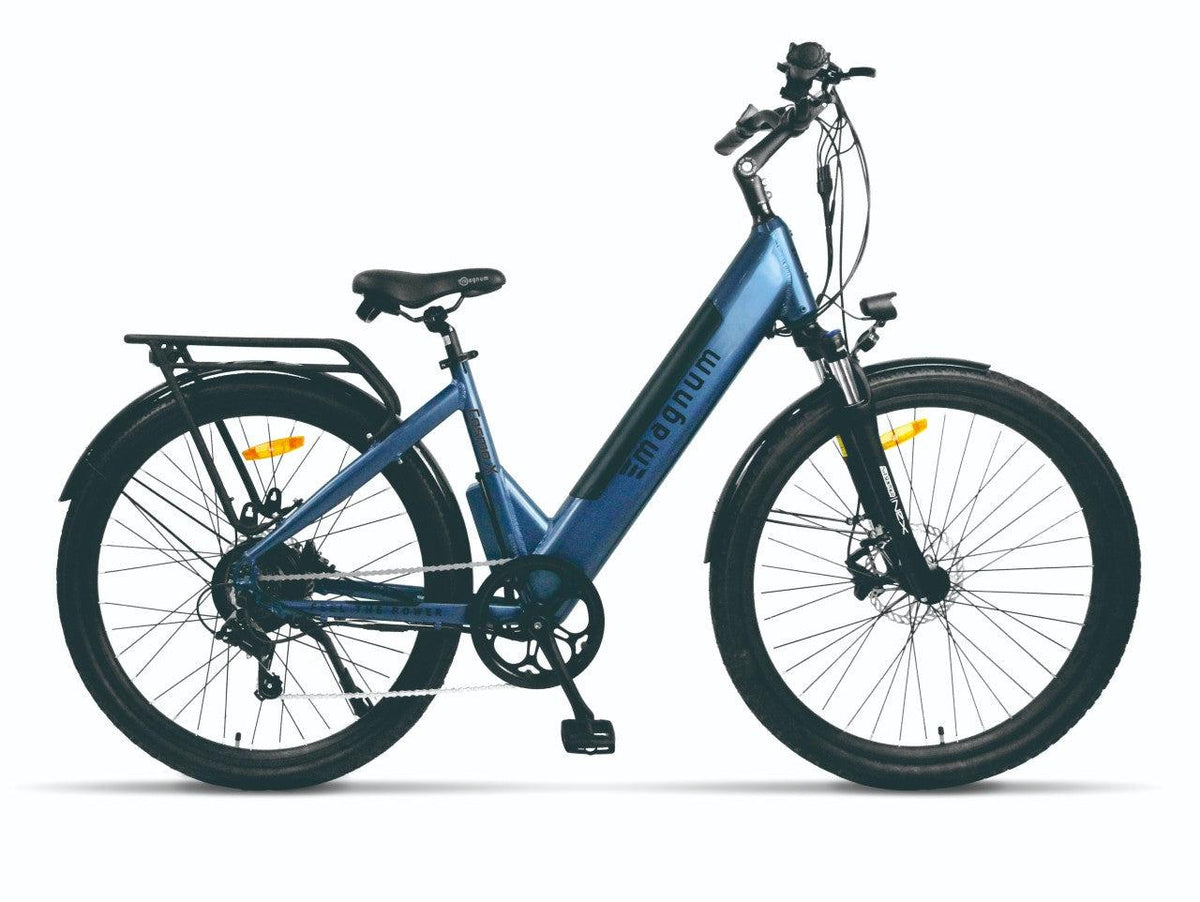

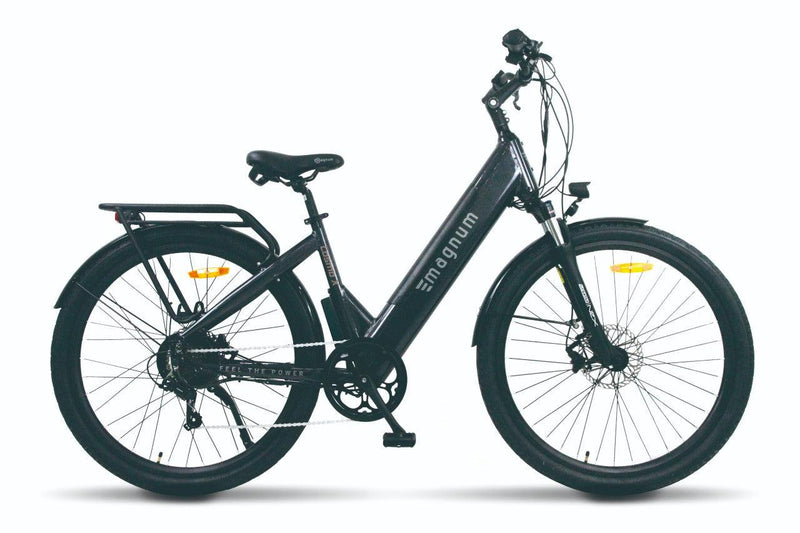

Magnum Cosmo X

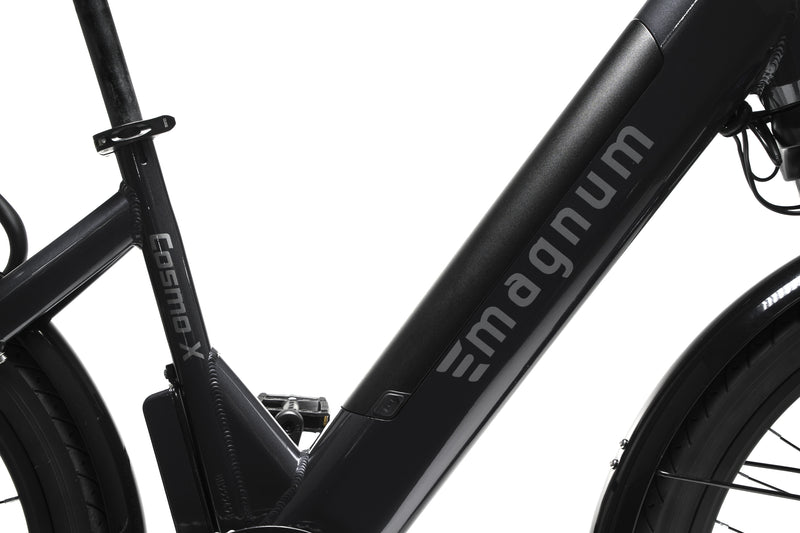

The Magnum Cosmo X has a light low step frame with a fully integrated battery. The powerful electric system includes a 500W motor, 48V with 15Ah battery for all of your errands and adventurous needs!

Model:
Magnum Cosmo X

Body Position:
Upright

Warranty:
One Year Limited Warranty

Max Load:
275lbs

ELECTRONIC DETAILS

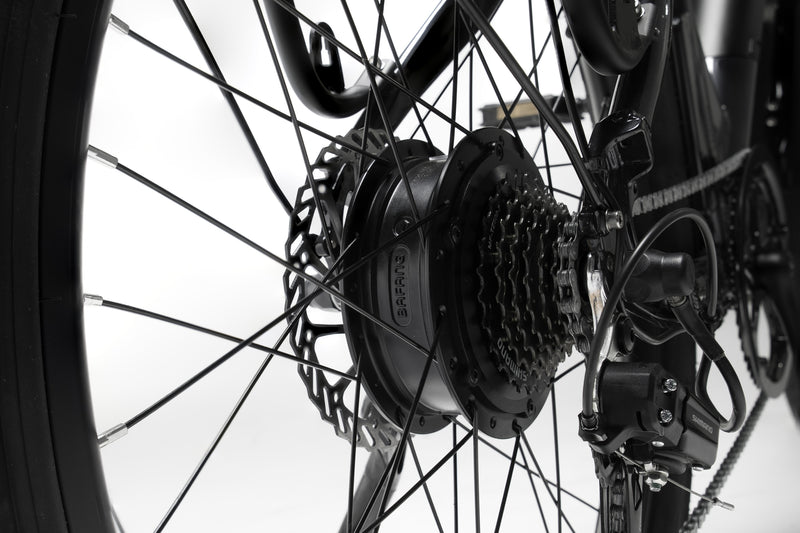

Motor Type:
Rear Geared Hub Motor

Motor Output:
48 Volts 500 Watts

Battery Voltage / Amp Hours / Watt Hours:
48v / 15ah / 720wh

Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)

Estimated Charge Time:
7.5 Hrs

Estimated Min And Max Range:
35 – 65 Miles (Depending On Riding Style, Terrain, Rider Weight, and Pedal Assist Level.)

Display Type:
LCD Display

Display Readouts:
Battery Level (4 Bars), Speed Kilometers Only, Assist Level (0-3), Odometer, Trip Distance

Drive Modes:
Pedal Assist, Twist Throttle

Top Speed:

25mph

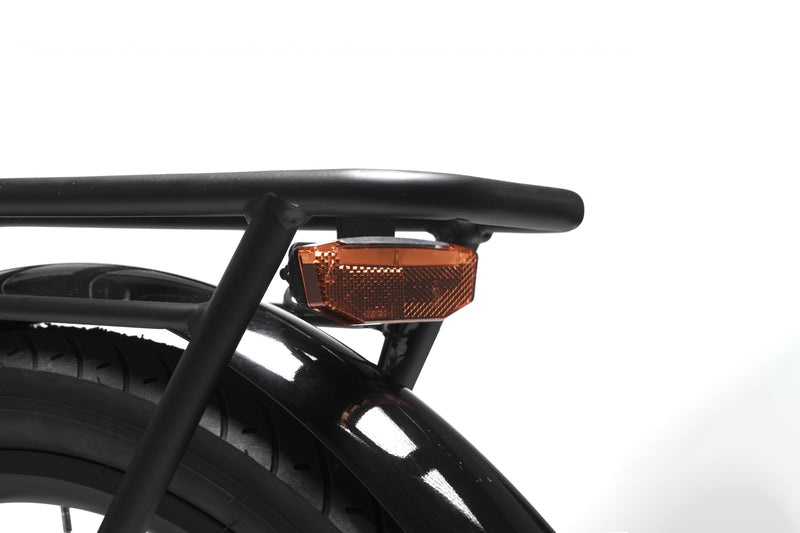

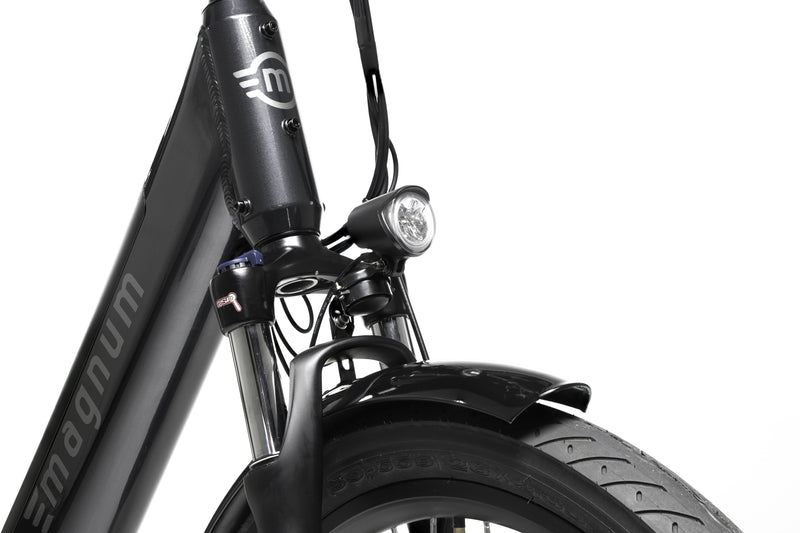

Lights:
Integrated Front and Rear Light controlled by the display (power on/off)

BICYCLE DETAILS

Total Weight:

49lbs

Battery Weight:
7lbs

Frame Type:
Low Step

Fork Details:
SR Suntour NVX Suspension Fork with 63mm travel and preload adjustment

Gearing Details:
Shimano Tourney Derailleur 7 Speed

Shifter Details:
Shimano 7 Speed

Cranks:
Lunfeng 52T*170mm

Pedals:
Feimin City Style

Stem:
25.4mm Adjustable

Brake Details:
Clarks HD-300 Hydraulic Disc Brakes

Saddle:
QF Saddle Black

Grips:
Black Faux leather with stitching

Seatpost:
27.2*300mm

Fenders:
Aluminum Alloy front and rear fenders

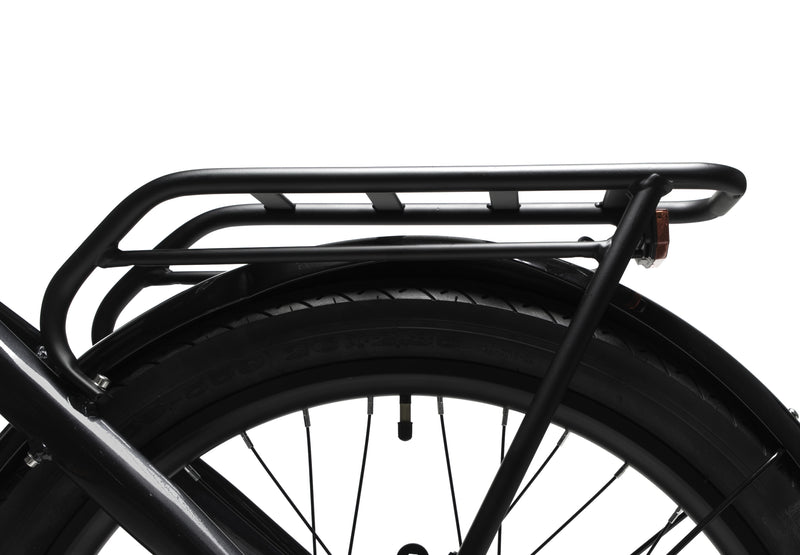

Rack:
Rear carrier rack

Rims:
26″

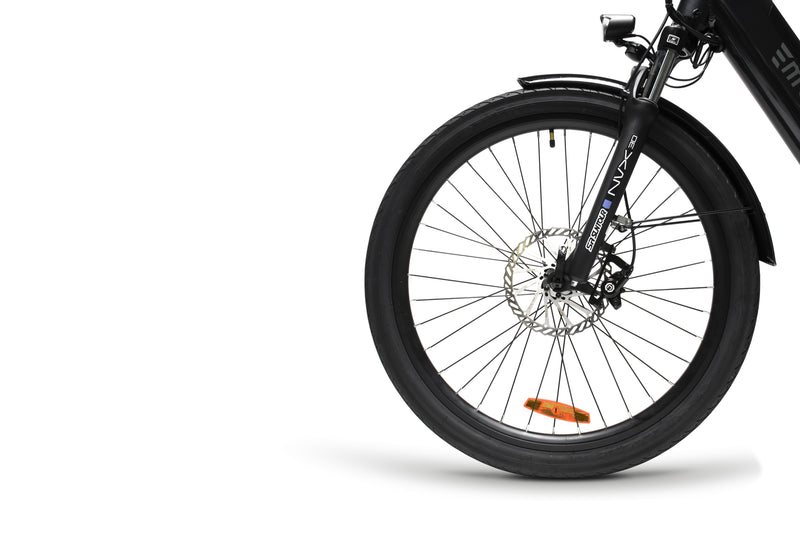

Tires:
Innova 26″ x 2.35″
