E-Bike Battery Charger 36v 4A

Sold out

Description

E-Bike Battery Charger 36v 4A

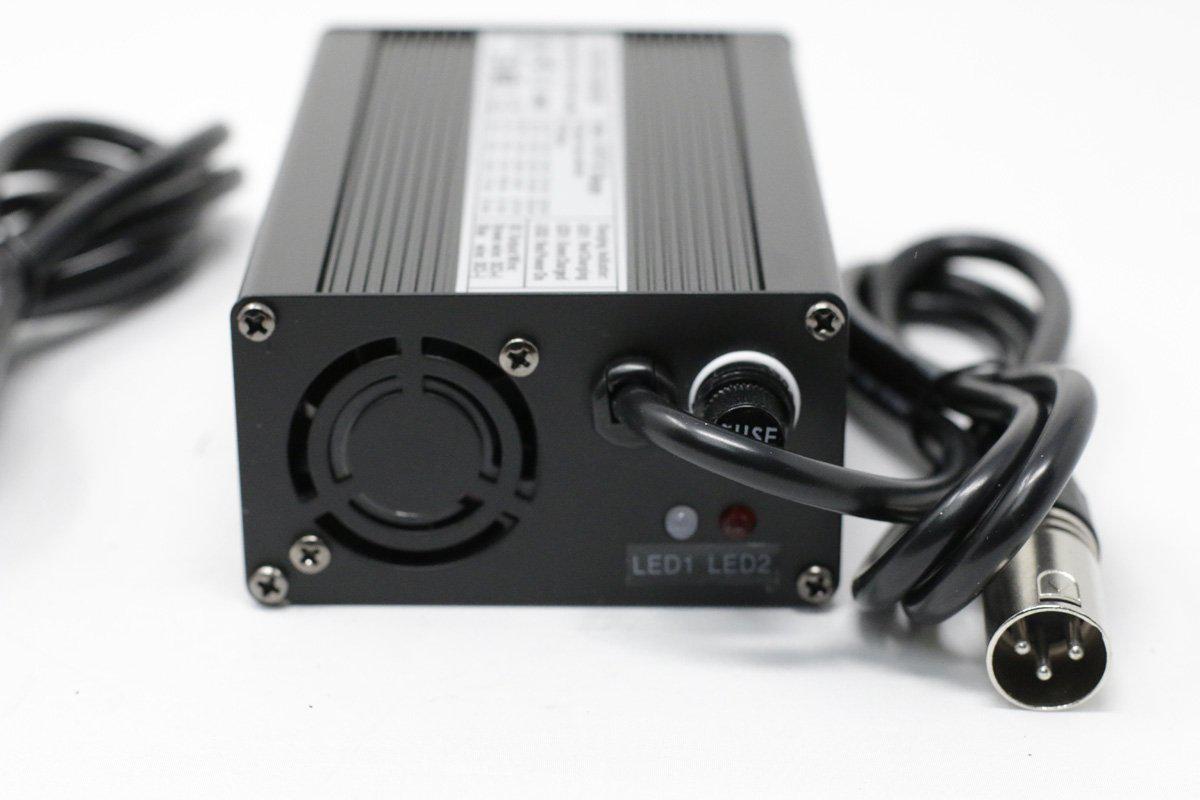

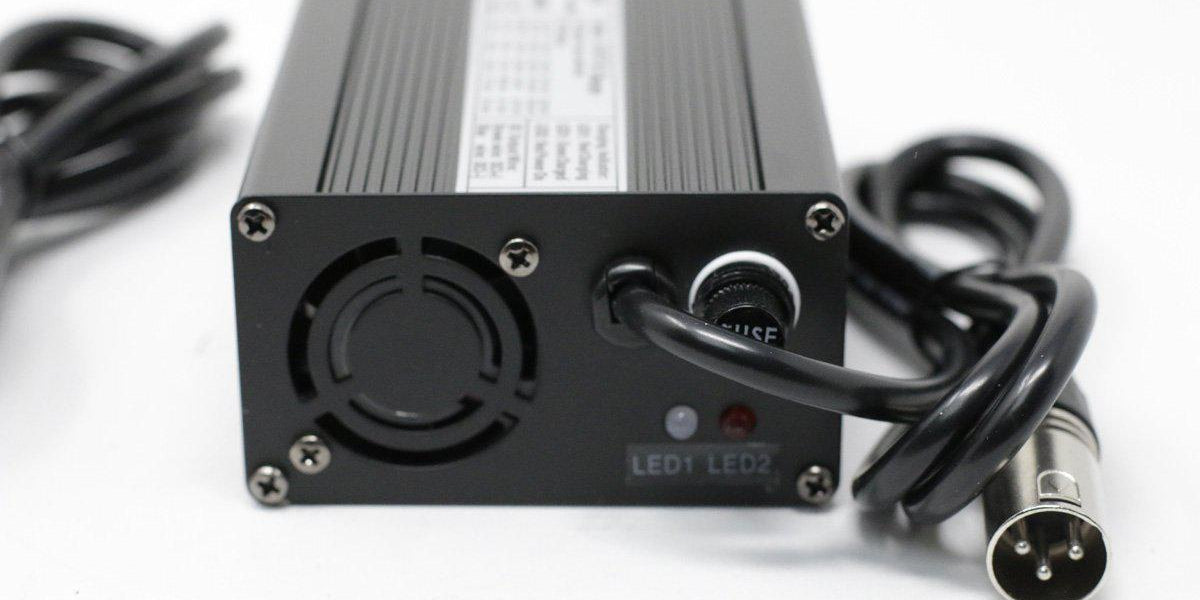

36V 4A Li-ion charger (42V output) - comes with XLR Connector (3-prong)

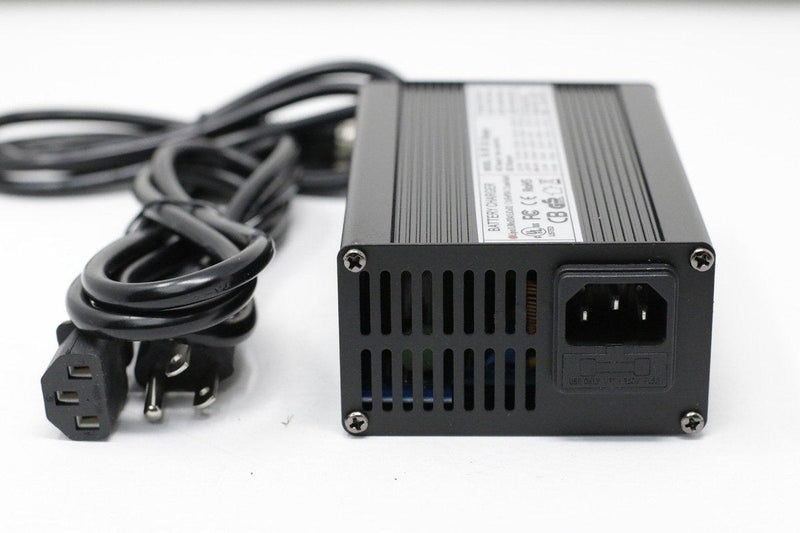

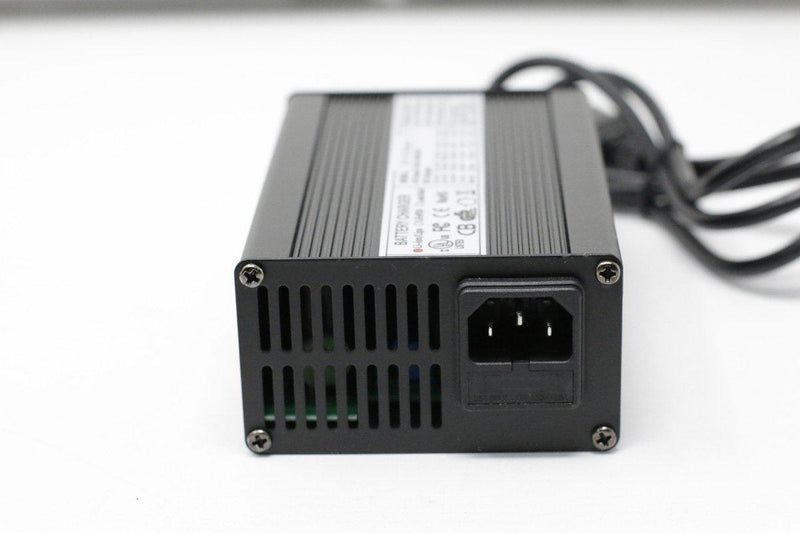

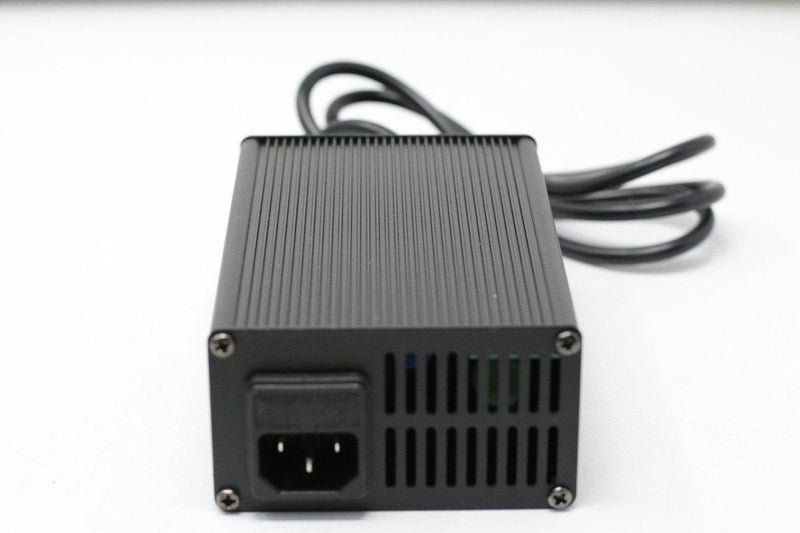

Charger with 115/220V AC range and a 3 pin XLR connector for charging.

Specs:

Charger Dimensions: 19 x 9 x 5.5cm
Output Voltage: 42V
Charger Current: 4A

Nominal

Output Voltage

CV

CC

Transition / Cut-off Current

Net Weight

Size

Lead Acid

Li-MnO2

LiFePO4

A

Lead Acid (A)

Li(A)

(kg)

(mm)

12V

14.7V

16.8V

14.6V

3/10A

0.6/2.0

0.15/0.5

0.6

135*90*50

24V

29.4V

29.4V

29.2V

2/6A

 0.4/1.2

0.2/0.3

 36V

44.1V

42.0V

 43.8V

1/4A

 0.2/0.8

 0.05/0.2

 48V

58.8V

 54.6V

58.4V

1/3A

 0.2/0.6

 0.05/0.15

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.
