Bafang Bluetooth Enabled 750c Full Color Display for BBDHD and BBS02

by Bafang
Sold out
$166.00
$166.00 - $166.00
$166.00
$149.40
$149.40 - $149.40
$149.40
 More payment options

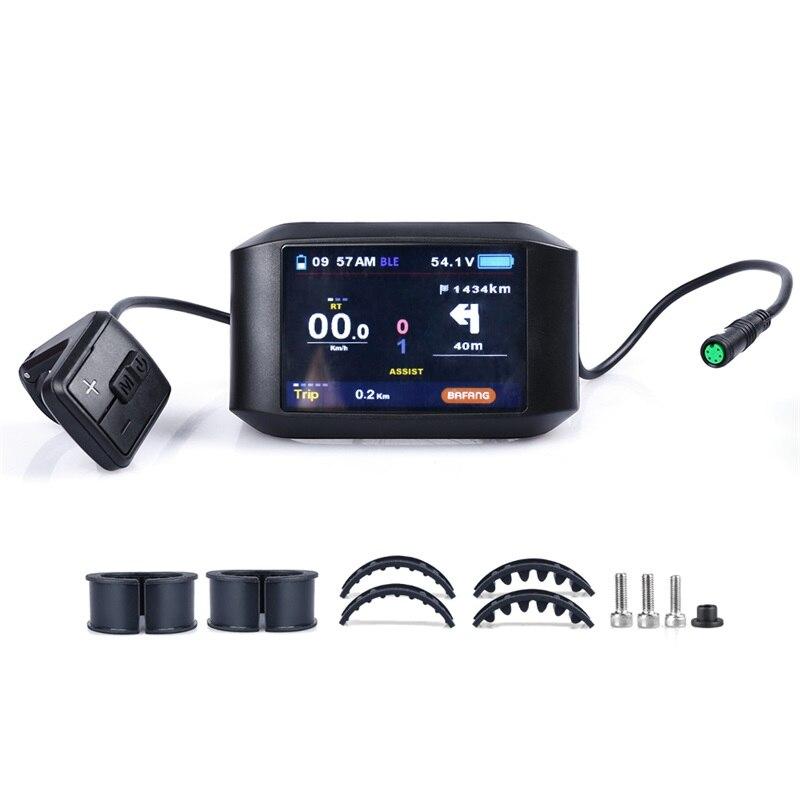

Bafang 750c Bluetooth Enabled Full Color Display for BBDHD and BBS02


Overview

  • 3.2inch IPS screen

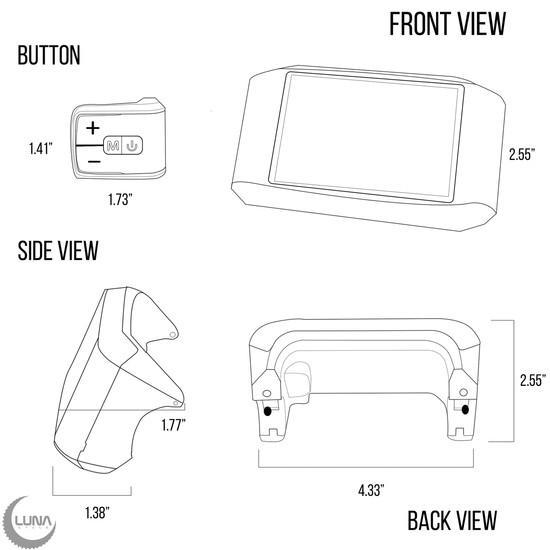

  • Dimensions: host/L110mm*W68.2mm*H68mm
  • 24V/36V/48V/52V battery supply
  • 9-level Assist:3-level/5-level/9-level
  • Bluetooth & Mobile navigation
  • Phone battery indicator
  • Clamps suit for 3 size of handlebar,31.8mm/25.4mm/22.2mm

Functions:

  • Compatible with BAFANG MID DRIVE BBSXX
  • Suitable for low temperature，Max-20℃.

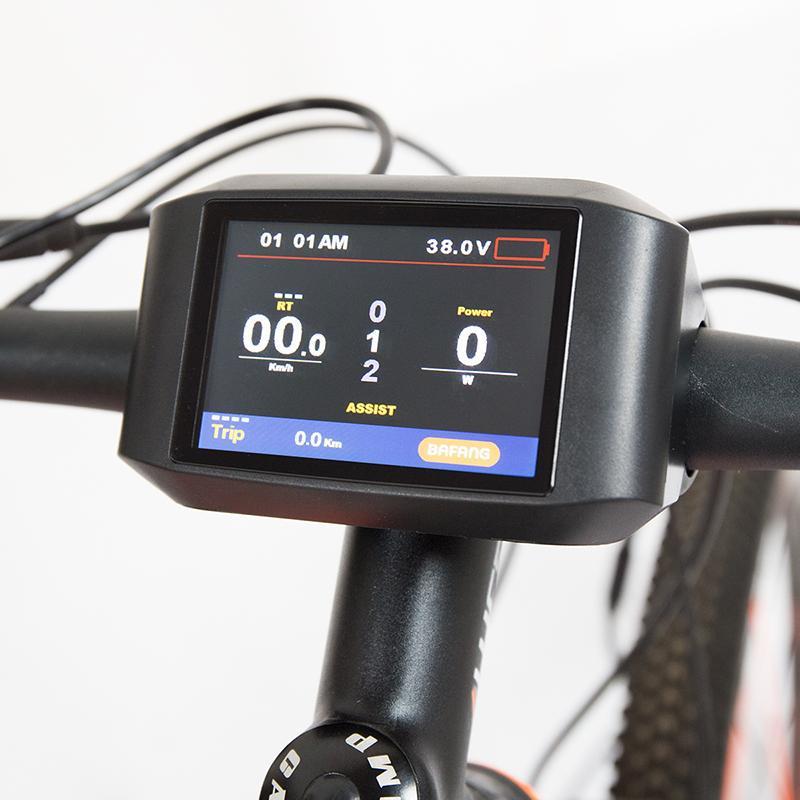

  • High-contrast 3.2 inch IPS colorful matrix screen
  • Ergonomic external button design, easy to operate.
  • Speed display: AVG SPEED,MAX SPEED,SPEED(Real-time).
  • Kilometer/Mile: Can be set according to customers habits
  • Smart battery indicator: Provide a reliable battery indicator.
  • Mileage indicator: Odometer/Trip distance/Clock/Riding time.
  • Power indicator: real-time power indicator, digital or analog.
  • 6km walking
  • Error code indicator
  • Software upgrade: Software can be upgraded through UART.


PLEASE NOTE:  This Bluetooth 750C is currently only supported by iPhone.

Type

750C colorful display

Nominal voltage

24/36/48/52V

Support Power Modes

0-3/0-5/0-6/0-9

Handlebar Size Fitments:

Ø 22.2/25.4/31.8 mm (with 2 sets of gaskets in the package from which to choose)

Display cable length

50cm including connector

Display to button switch cable length

22cm

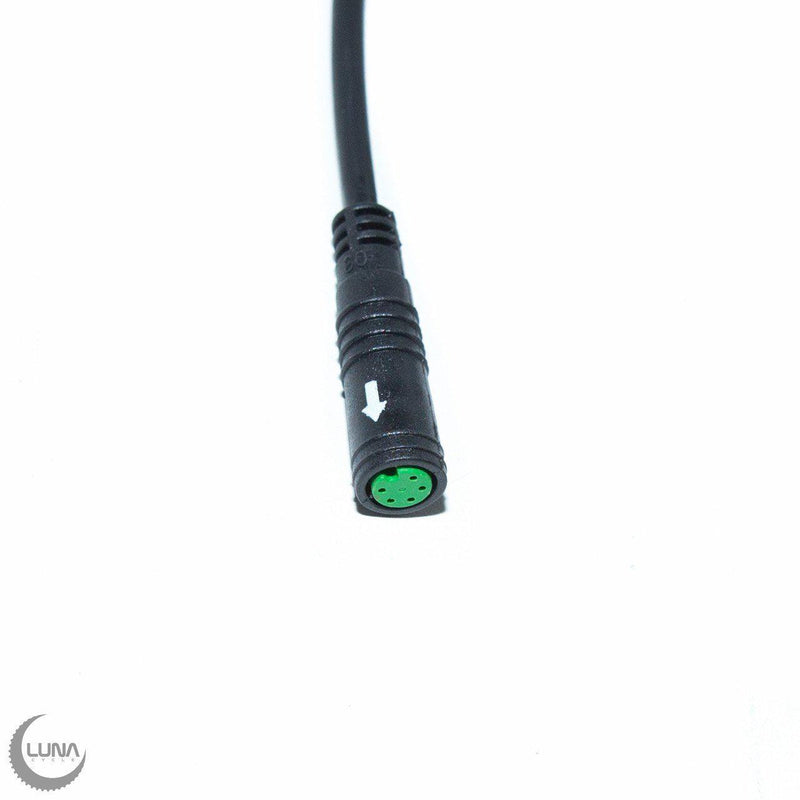

Connector

5-pin base connector

Application

Just for Bafang BBS01 BBS02 BBSHD midmotors



FUNCTION:

  • High-contrast IPS dot screen.
  • Set up Password of Turning on
  • Speed display: RT SPEED MAX SPEED AVG SPEED.KM/ Mile
  • Mileage: ODO, Trip, Time, Range.
  • Clock.
  • Power indicator.
  • Error code.
  • USB charging port: 5V/500mA.
  • Software Update.
  • Friendly HMI.
  • 36V/48V compatible.
  • IP-Code IP65
  • Certifications CE/EN15194 Rohs
