E-BikeKit™ 48v10ah Li-ion E-Bike Battery Pack

INCLUDES 3 AMP CHARGER

These Li-ion batteries are our longest lasting E-Bike Battery with an expected life cycles of 700-800. They are also our lightest batteries - at less than half the weight of lead-acid batteries, they are easy to carry and include an integrated carrying handle. The battery is protected by an aluminum case and key lock system.

Shipping Note: Li-ionbatteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via UPS Hazmat and require a signature for delivery. You may receive your kit, battery and possibly the battery rack (if applicable), on separate days.

BATTERY SPECS:

Top Speeds: 26MPH w/ 500w Geared "Performance" Motor / 20MPH w/ 500w Direct-Drive "Heavy duty" and Trike Motor
Range: 12-24 Miles (Rider Weight, Rider Input and Terrain Contingent)
Charging Time: 10ah pack = 3.33hrs / 3Amp Charger = 3 amps charged per hour
Nominal Voltage: 48v
Nominal Capacity: 10Ah (0.2C)
Battery Energy: 480Wh (Approx.)
Dimensions: 15" (382mm) x 6" (150mm) x 3" (70mm) (Approx.)
Total Weight: 9.7lbs/4.4kg
Cell Assembly: 18650-3.6v-13S5P
Life Cycles: 800-1000 cycles
Max. Continuous Discharge: 22.5A
BMS Protection Current: 30A
Discharge Cut-Off Voltage: 39v
Max. Charge Voltage: 54.6v
Inner Resistance: <= 180mΩ
Charge Time: <= 3.3 hours
Operation Temperature Range: Charge: 0’C---45’C / Discharge: -20’C---60’C
Storage Temperature: 0’C---40’C (Extended Storage: 15’C-25’C;)
Battery Case Material: Aluminum
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Manufacturer: Electric Bike Technologies

Bafang

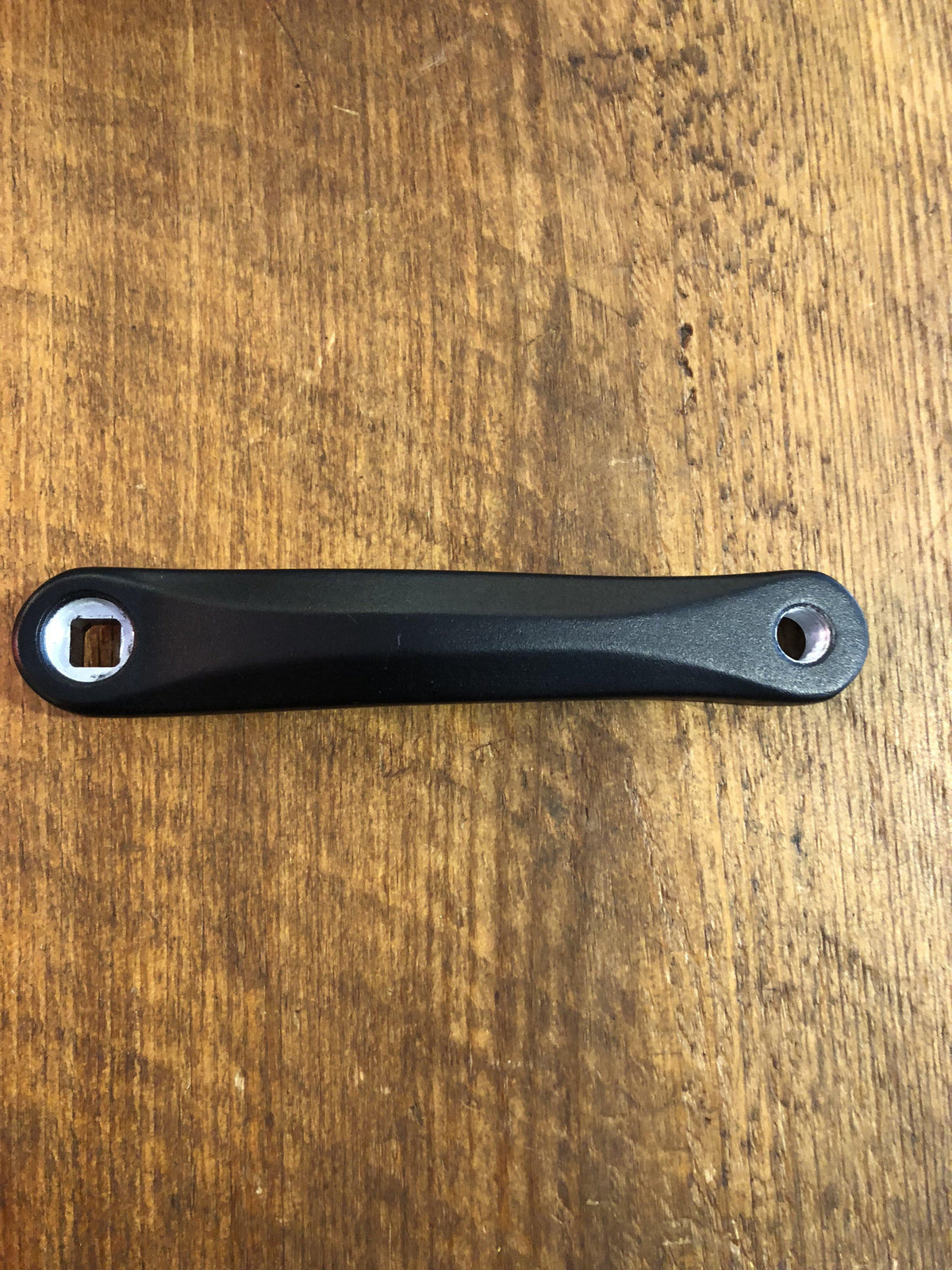

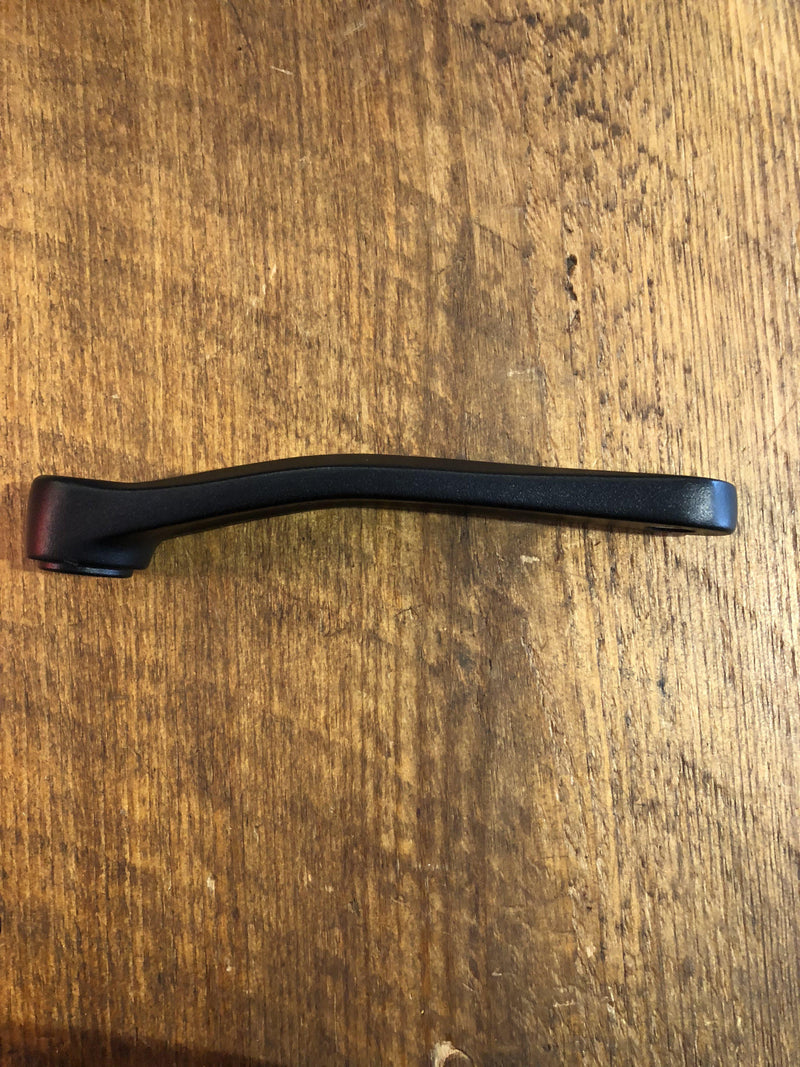

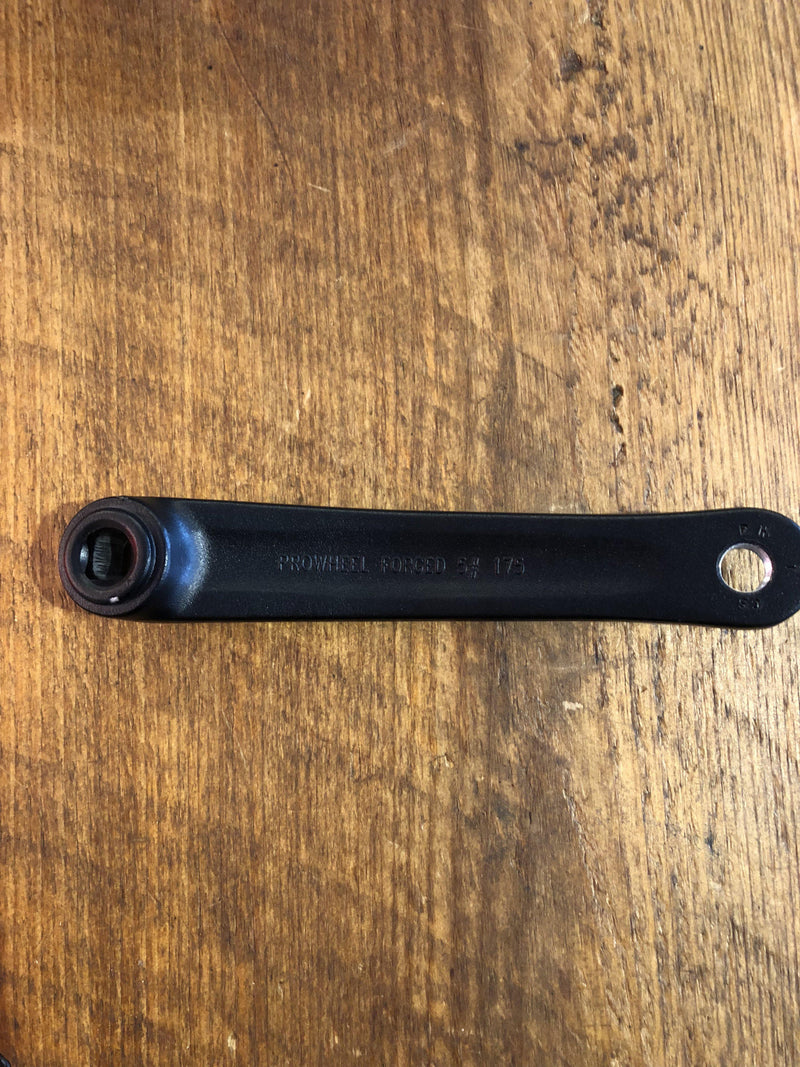

Bafang 8Fun Replacement Left-side Crank 170mm - by Prowheel
