48v 12ah E-Bike Battery - Silver Fish Case

Sold out
Original price $323.00
Original price $323.00 - Original price $323.00
Original price $323.00
Current price $290.70
$290.70 - $290.70
Current price $290.70

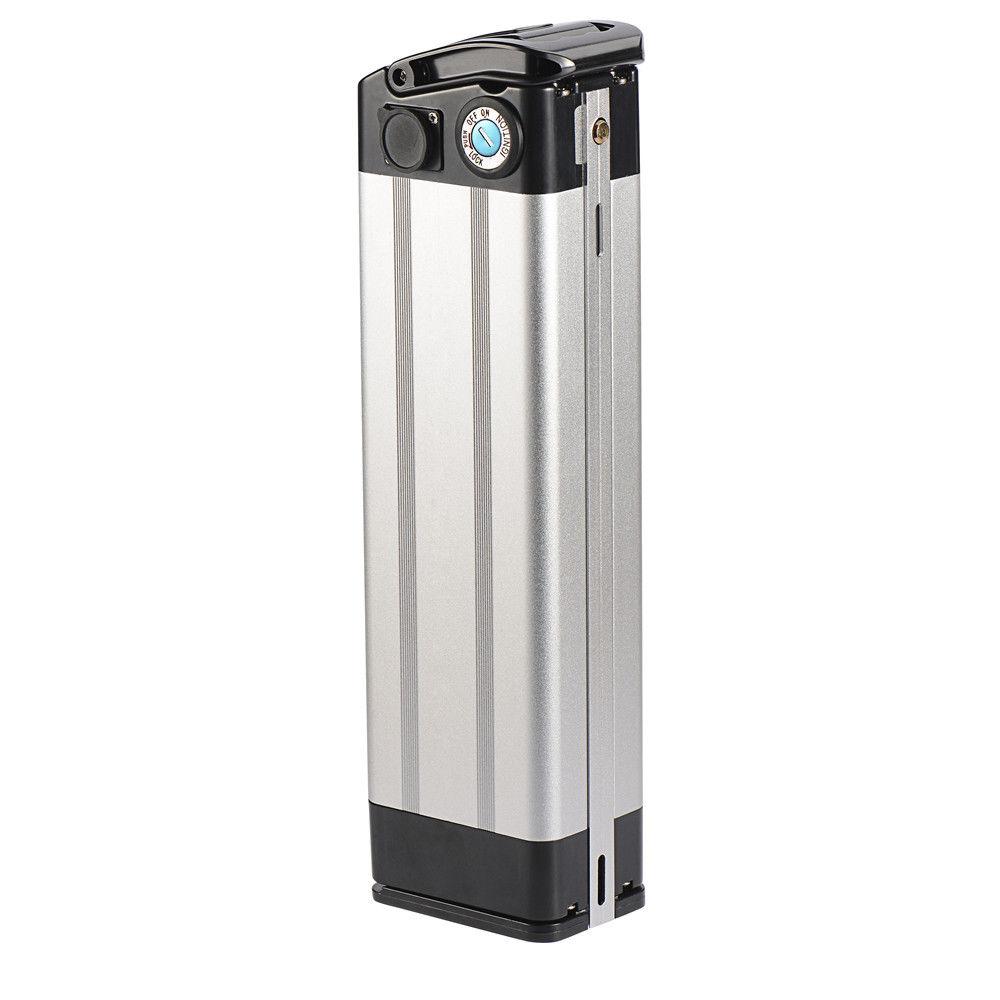

48v 12ah E-Bike Battery - Silver Fish Case "Under the Seat"

Please note this is a bottom discharge Silver-Fish. Requires an XLR Charger.

The size is L390*W110*H75*, please make sure this size can be installed to your bike.

Used for under-seat power on e-bikes, the "Silver Fish" 48v 12ah comes with mounting hardware, and key lock. Key also serves as the ignition switch and must be turned to the "on" position for active use.

  • Battery Model: 48V 12Ah
  • Charging time: 2.5 hours at 2a charge rate
  • Rated Voltage:   48V
  • Capacity: 12Ah
  • Use Type: Electric Bike
  • Brand: Xiango-Go
  • Battery Chemistry: Lithium-Ion
  • Color: Silver/Black
  • Case: Aluminum
  • Shipping: Hazmat Certified
  • Certification:      CE,RoHS,MSDS
  • Battery Type:Fish Lithium-ion
  • Batteries combinations:13-S,6-P
  • Impedance:≤150mΩ
  • Component:Li(NiCoMn)O2
  • Cell quality:18650-2000mAh
  • Discharge Standard current:10A-13A
    Discharge Max current:28A-30A
  • Discharge Cut-off voltage:30V
  • Discharge cycle life: 800 times
  • Discharge method :Top discharge
  • Charging method: CC/CV
  • Charging time :Standard 0.2C5A×5hrs
  • Charging time:Quick 0.5C5A×2hrs
  • Charge Max current:2A-5A
  • Charge Max voltage:42V
  • Fuse:Installation position:Inside on the PCB
  • Fuse:Diameter(mm):5
  • Fuse:Length(mm):30
  • Fuse:Current:30A
  • Does not include Charger.
