Magnum Ranger Electric Bike 2.0

by Magnum
Original price $2,199.00 - Original price $2,199.00
Original price
$2,199.00 - $2,199.00
Current price $2,199.00

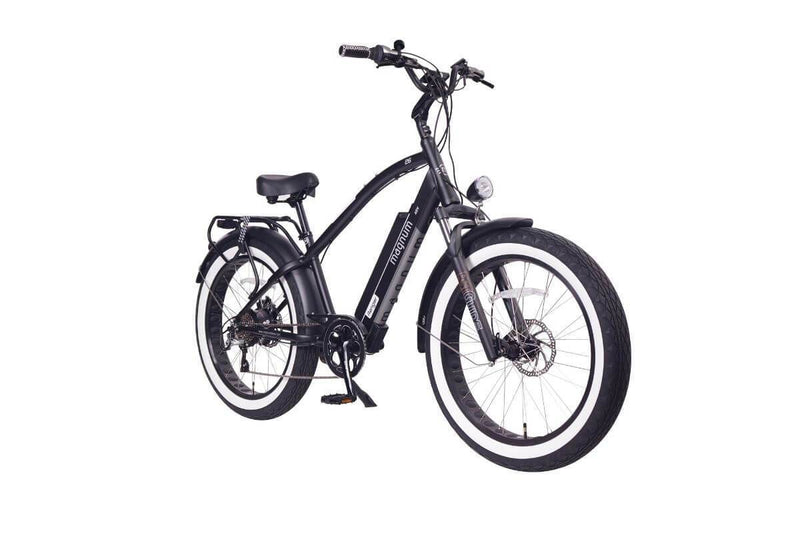

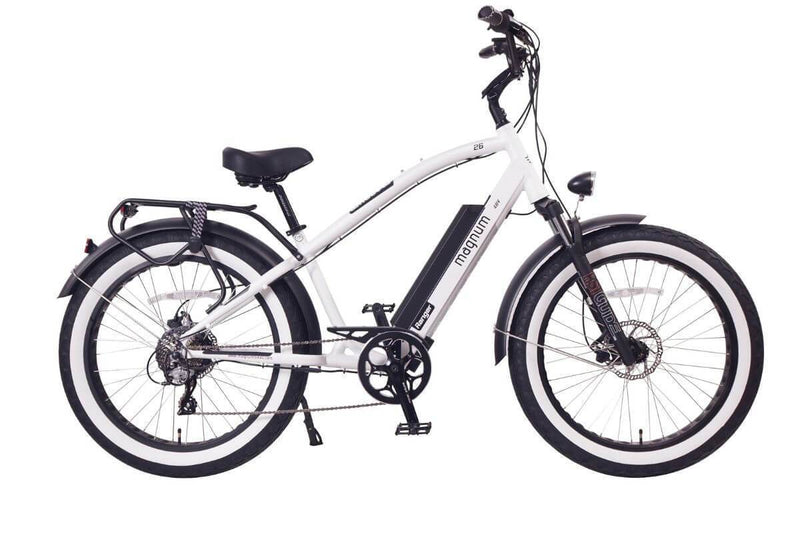

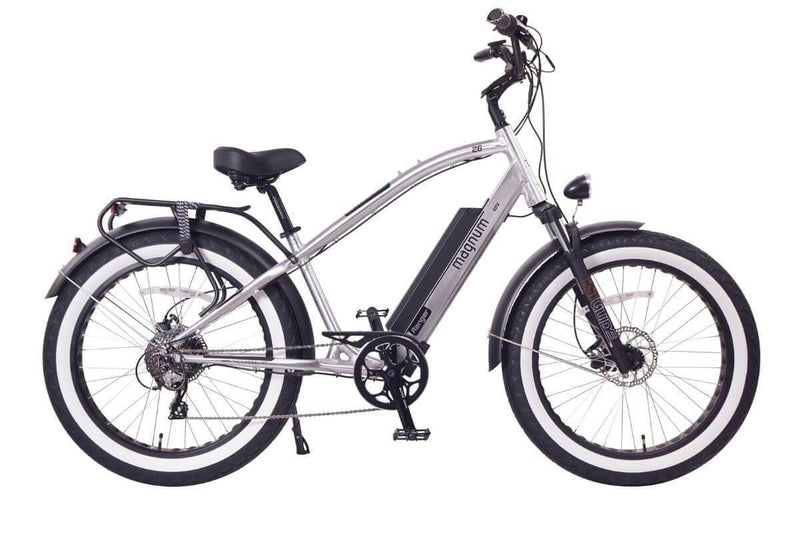

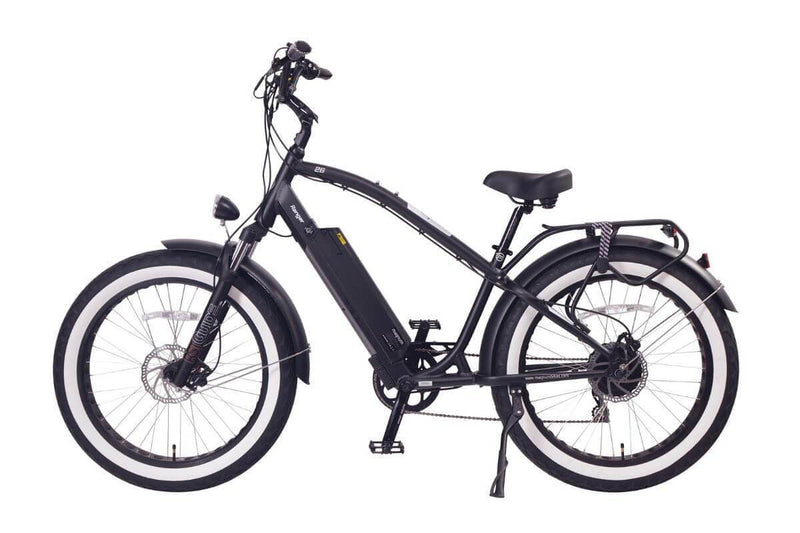

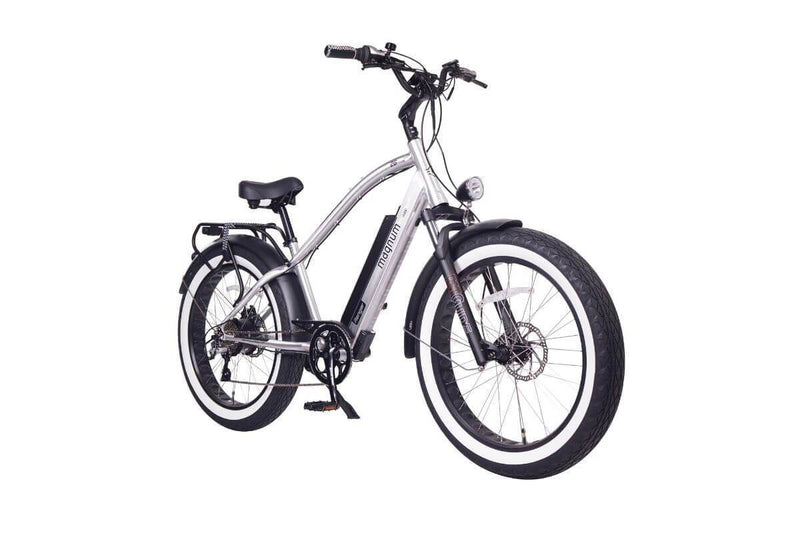

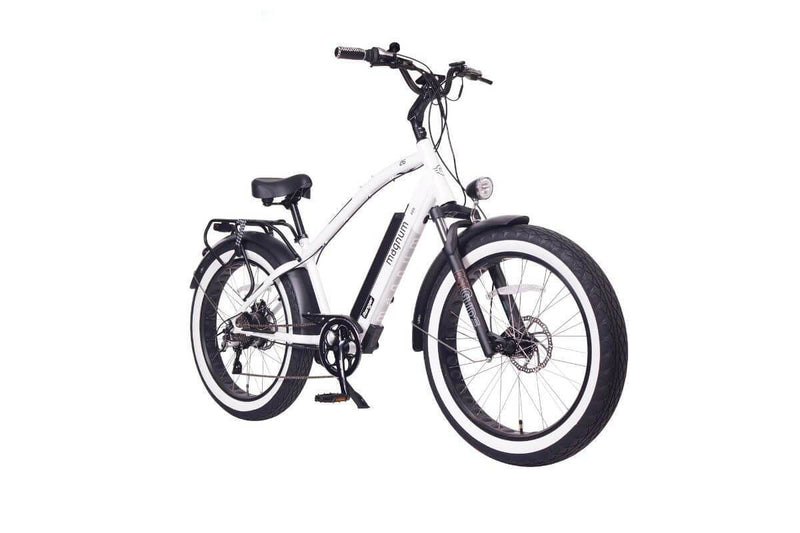

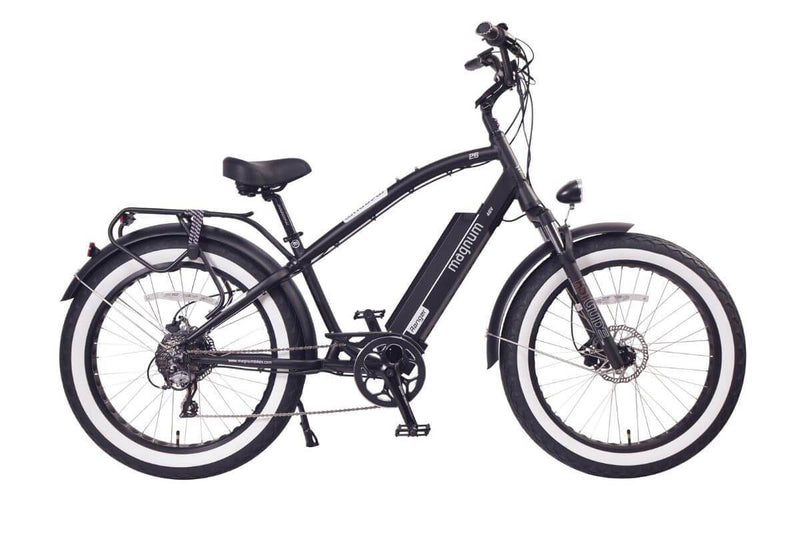

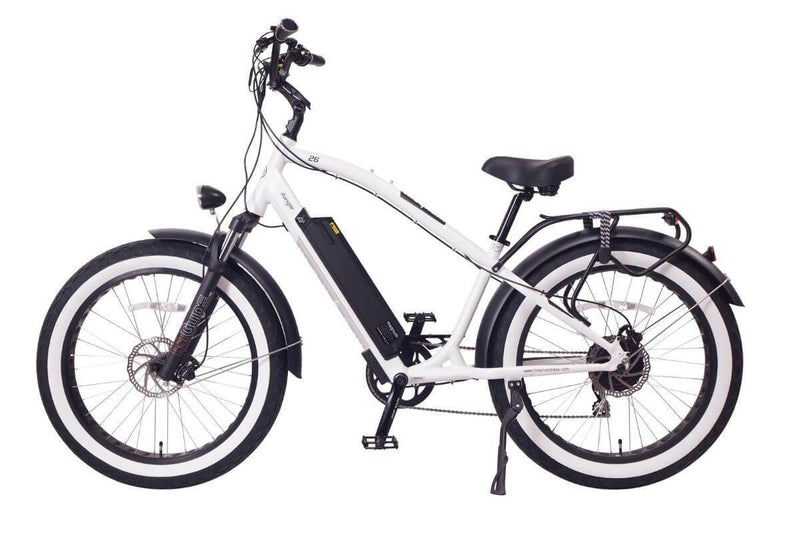

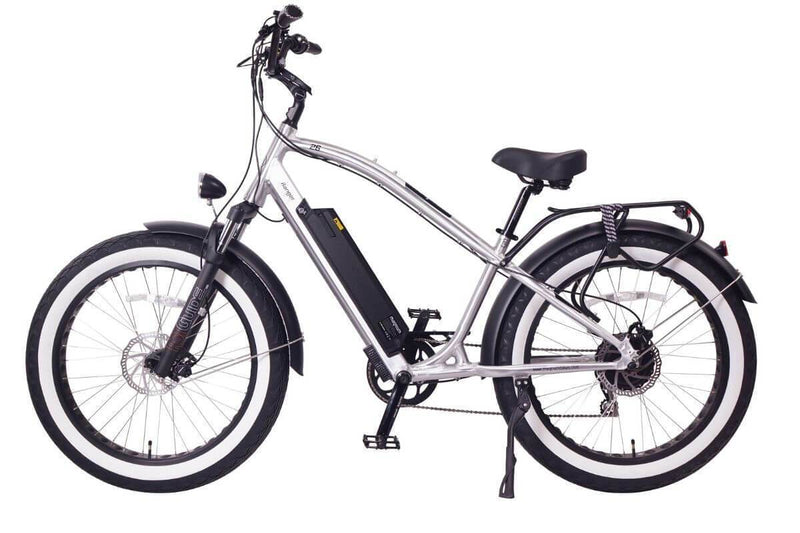

 Magnum Ranger Electric Bike


  • Body Position: Upright, Upright Relaxed
  • Warranty: 1 Year Comprehensive
  • Max Load: 265lbs



  • Motor Type: Das-kit R4 Rear Geared Hub Motor
  • Motor Output: 48v 750w
  • Battery Voltage / Amp Hours / Watt Hours: 48v / 13ah / 624wh / With Usb Port
  • Battery Chemistry: Lithium Nickel Cobalt Manganese (Li-ncm)
  • Estimated Charge Time: 6.5 Hrs
  • Estimated Min And Max Range: 25 To 75 Miles (Depending On Riding Style, Terrain, Rider Weight And Peddle Assist Level.)

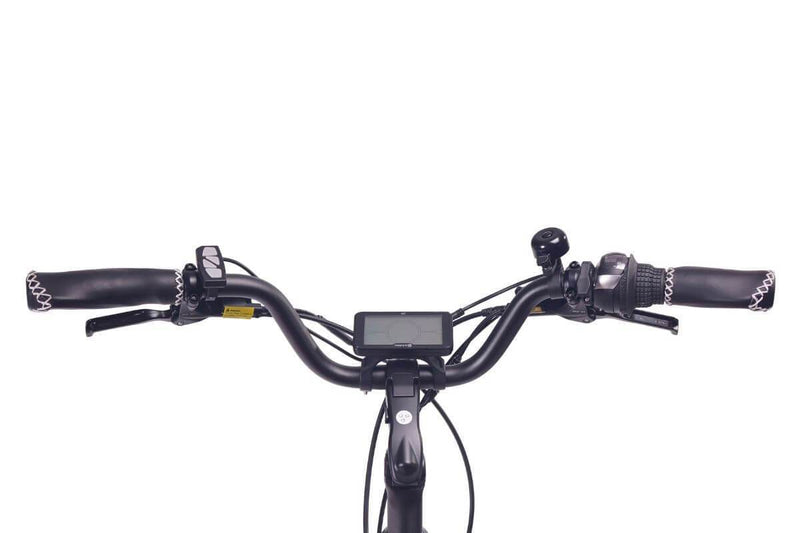

  • Display Type: Das-kit C7, Fixed, Backlit, Monochrome Lcd
  • Display Records: Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
  • Drive Modes: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
  • Top Speed: 25mph With Pedal Assist, 20mph Throttle Only
  • Lights: Independent Front Headlight, Independent Rear Light


  • Total Weight: 75lbs
  • Battery Weight: 9lbs
  • Frame Type: High Step
  • Frame Material: 6061 Aluminum Alloy
  • Fork Details: Rst Guide Spring Suspension, 80mm Travel With Lockout
  • Attachment Points: Rear Rack Bosses, Fender Bosses
  • Gearing Details: Shimano, Acera Derailleur, 8 Speed
  • Shifter Details: Shimano Grip Revoshift 8 Speed, 11-32t
  • Cranks: Prowheel Ounce 48t Chainring With Alloy Guard, 170mm, Square Taper Bottom Bracket
  • Pedals: Wellgo Alloy Platform Vb087
  • Stem: Promax, Tool-free Adjustable, 100mm Length
  • Brake Details: Tektro Auriga Hydraulic Disc Brakes With Motor Inhibitors 180mm Front, 160mm Rear
  • Grips: Selle Royal Brown
  • Saddle: Selle Royal Cruiser With Gel And Dual Spring Suspension
  • Seatpost / Seatpost Dimensions: Promax, Sp-252 / 30.9 X 300mm
  • Fenders: Front And Rear
  • Rims: Aluminum Alloy, Double Walled, Oval Cut Outs, 81mm Outer Diameter, 36 Hole
  • Tires: Chao Yang H-5193
  • Wheel Size: 26″ X 4.0”

* Please allow extra delivery time for shipping e-bikes. All electric bicycles must be shipped Hazmat Certified by U.S Ground. Estimated delivery window is anywhere from 7-16 days depending on location.
