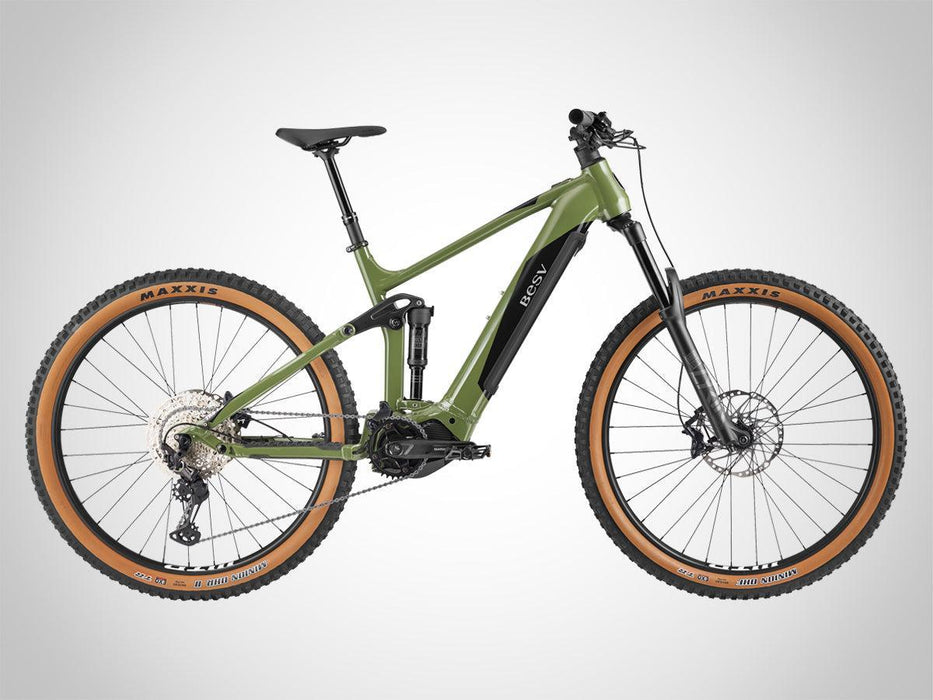

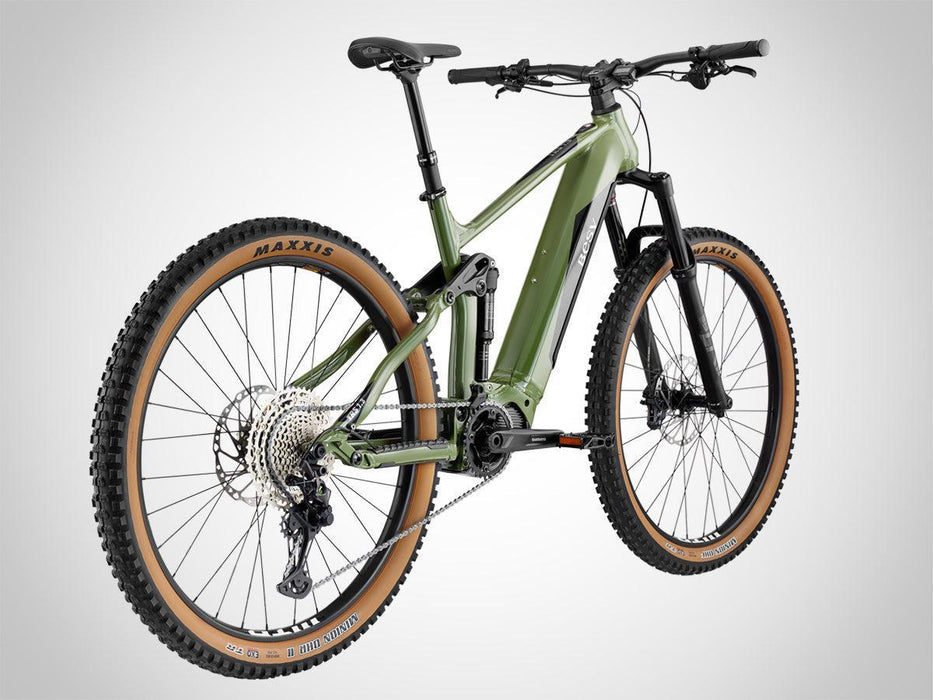

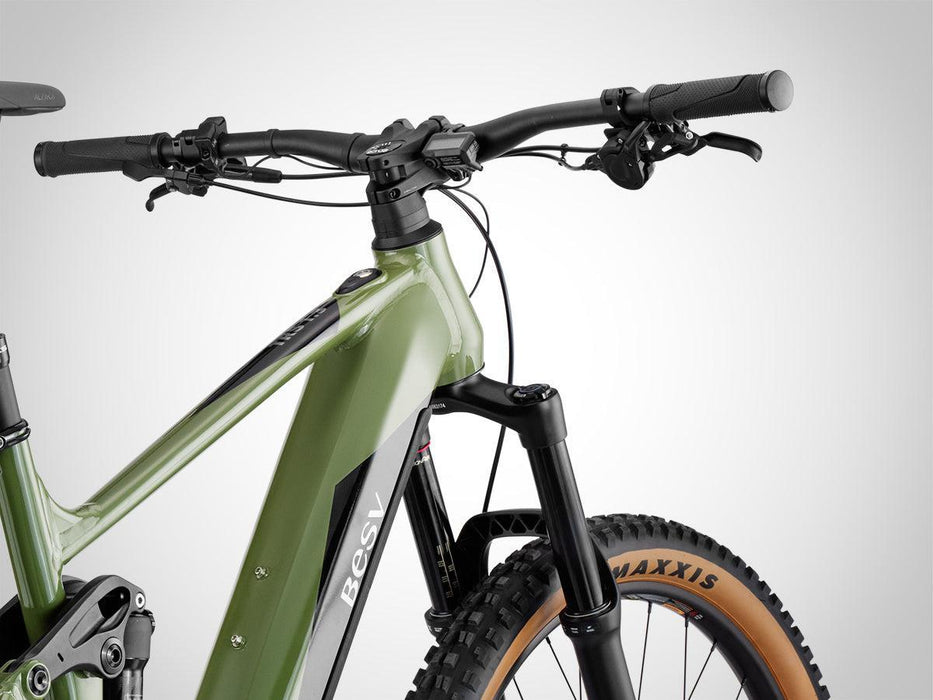

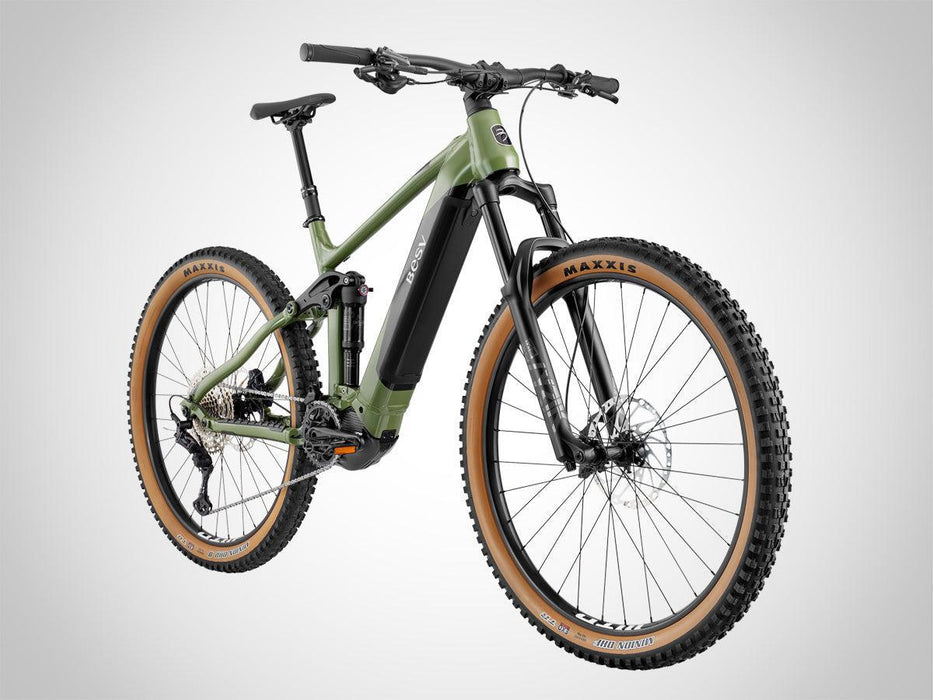

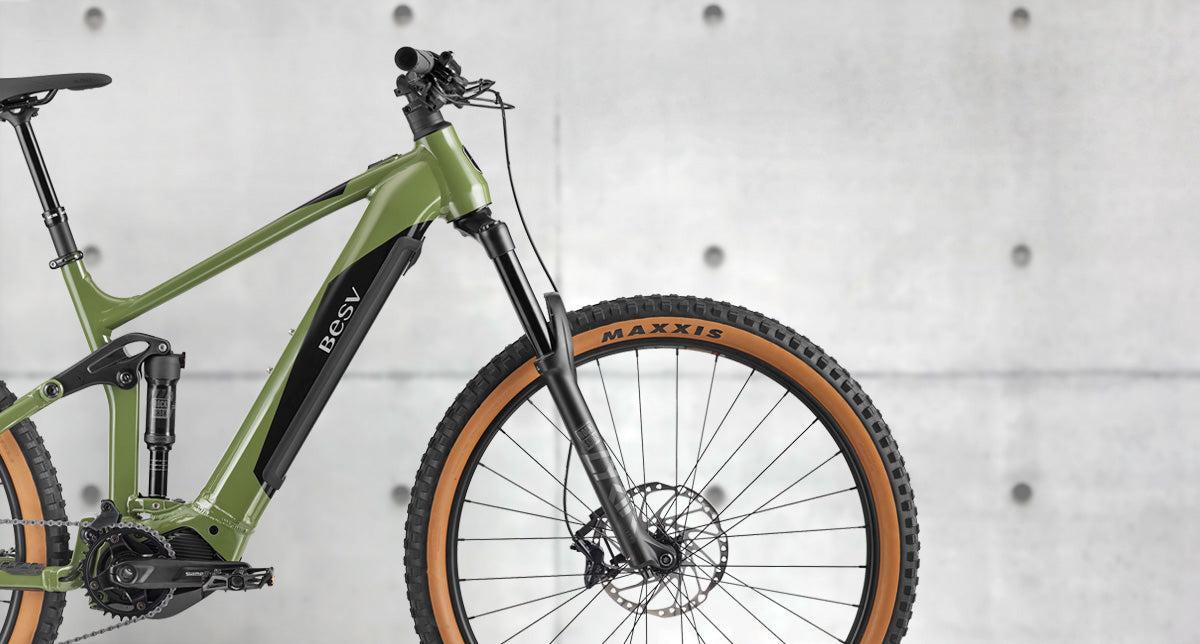

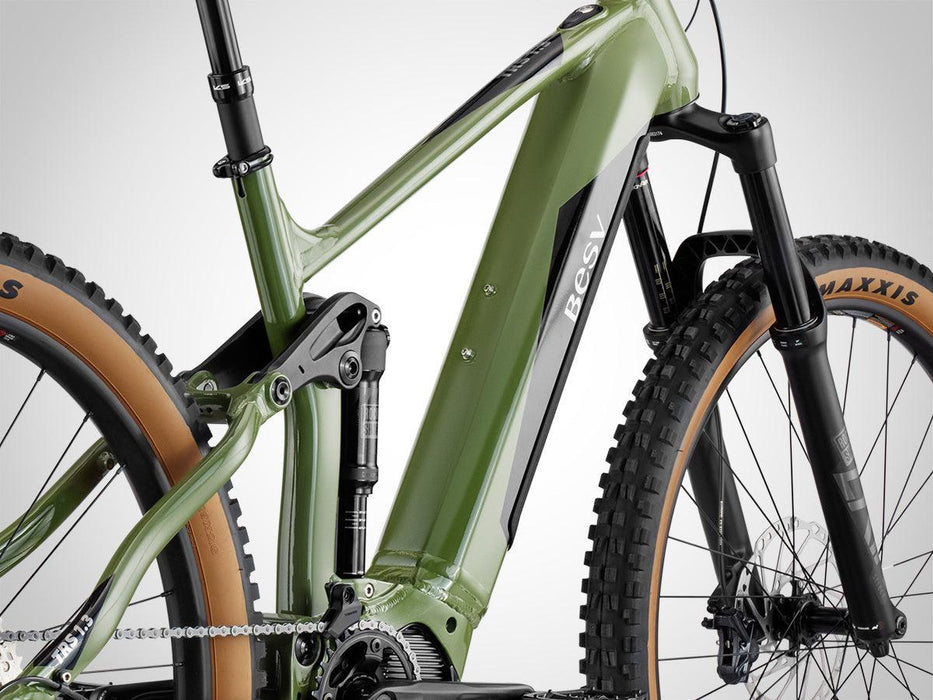

BESV TRS 1.3 Full Suspension eMTB
Up to All Your Challenges
Our Full-Suspension e-MTBs will send you over the most challenging trails with ease and precision. The 150mm rear and 160mm front suspension travel, combined with a large batteries and strong engines, make these serious partners for tougher off-road work. The TRS 1.3 devours everything in its path, thanks to an extremely powerful Shimano mid-mounted motor, high-quality Deore gears (12) and an extra-large battery. You keep maximum control thanks to the excellent RockShox front fork, hydraulic disc brakes and the premium tire set from Maxxis. To find your way well, you can connect the display to your phone via Bluetooth and use the navigation.
- 630 Wh battery capacity
- Shimano Steps EP800 with 85 Nm torque
- Maxxis Minion tires
| Motor / Sensor | Shimano EP-800 Mid Drive (Power: 250W, Torque: 85Nm) |
| Battery | 630Wh, integrated battery, approved for “Shimano Service Program”, with Smart 5.6-4A charger |
| Frame Material | Aluminum |
| Frame Size Options | S (42.5cm) / M (46cm) / L (49cm) |
| Color | Dark khaki green gloss |
| Drivetrain | Shimano XT 12 speed |
| Fork | Rock Shox Domain R, 38mm stanchions, Debon Air with Charger RC, 1.1/8″-1.8″ tapered alloy steerer, travel 160mm, Maxle Ultimate, with RS short fender |
| Saddle | Selle Italia Model-X Superflow eBike |
| Brakeset | Sensah 2-piston hydraulic disc brakes with 203 mm rotors |
| Tires | Front: Maxxis Minion DHF / Rear: Maxxis Minion DHR II, 29″x2.6″, Normal Compound, EXO, Tubeless Ready , 60 TPI foldable, Tanwall sides |
| Sensor | Torque |
| Assist Modes | 3 Modes |
| Top Assist Speed | 20mph (Class 1) |
FRAME SIZE S M L
RIDER HEIGHT 165-175CM 174-187CM 185-195CM
1 Top Tube Length 599 621 657.5
2 Frame reach 420 440 475
3 Stack 612 613 612
4 Stand over height 836 841 844
5 Wheel Base 1218 1240 1278
6 Head Tube Length 120 125 130
7 Head Tube Angel 65° 65° 65°
8 Seat tube angle 70° 70° 70°
9 Seat tube Length 425 460 490
10 Chainstay Length 465 465 465
11 BB Drop 15 15 15
