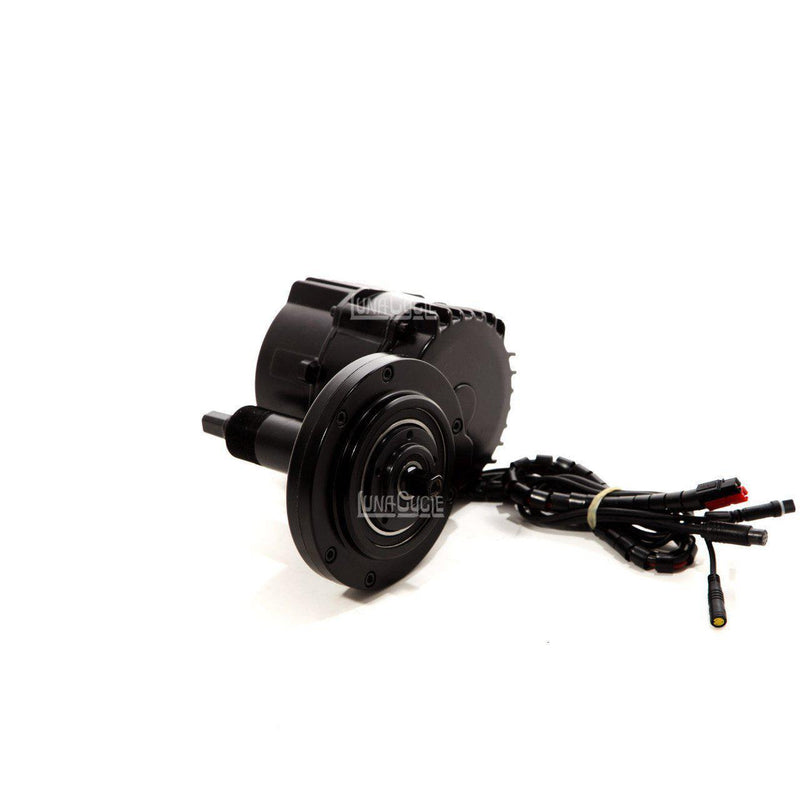

Bafang BBSHD 1000W Mid Drive E-Bike Motor-Voltaire Cycles

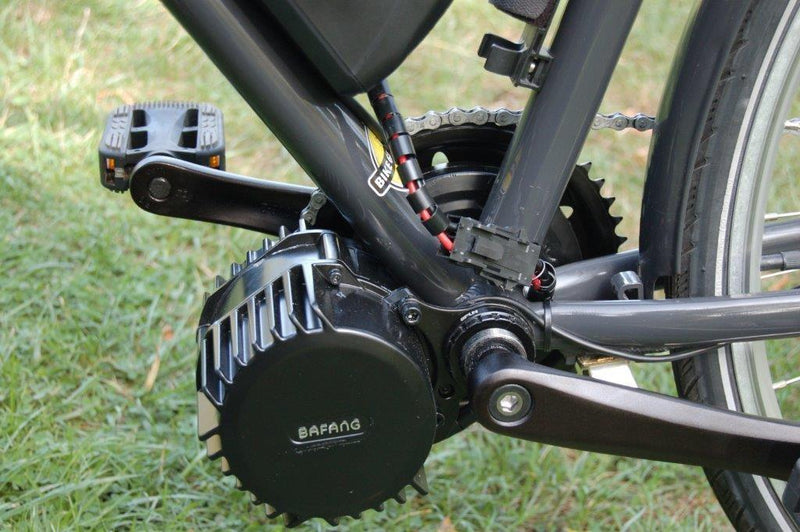

Bafang BBSHD 1000W Mid Drive E-Bike Motor and 17.5 amp hour kit installed

by Bafang
Sold out
$1,850.00 - $1,850.00
$1,850.00
$1,850.00 - $1,850.00
$1,850.00

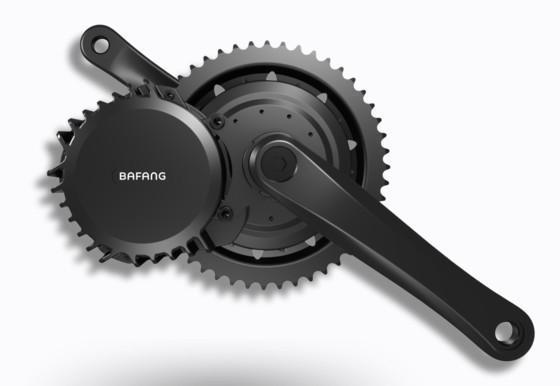

Introducing the all-new Bafang BBSHD 1000w Mid-Drive E-Bike Kit

  • The most powerful and reliable Mid Drive Kit on the market
  • Complete redesign of the BBS02 series for more power
  • 1600 watts of peak power (in off road mode)
  • No technical knowledge necessary to install
  • Waterproof

The BBSHD is a complete redesign of the extremely popular mid drive the BBS02, every part is stronger and better. The BBSHD put out 150nm of force so much torque that you can stay in one gear and not shift as much as you would in the smaller drive.

This kit is for bottom bracket sizes of the most common sizes 68mm and 120mm (fat bike). Other BB sizes can be made to fit with our spacer kit. Read up about dealing with intrusive chainstays (article on fitting here)

The BBSHD heralds a new age of factory installed mid-drives. Unlike most other factory mid drives the BBSHD is designed to be mounted onto almost any bicycle currently manufactured. You can mate the BBSHD to any bike with a bottom bracket that is anywhere from 68mm to a much wider 100mm fat bike. The BBSHD is even now made in odd sizes (72mm & 120mm), including extra fat. We include with every kit so that you can make your BBSHD fit for almost any bottom bracket. If in doubt order the next size up....and our spacers will help you make the kit fit.

Install it on anything and ride it anywhere. With the proper gearing the BBSHD will easily climb stairs, go well over 30mph on the flats and much, much faster down hills. Singletrack trail-riding, cargo bikes, high-speed commuters the BBSHD can do it all.

The BBSHD excels at singletrack riding (article on singletrack testing here) as well as soft sand (article on soft sand testing). The stock 46T steel chainring on this kit is very heavy and has too many teeth for trailriding, although it works fine for commuting.

Its predecessor the BBS02 would sometimes falter if run at peak power for too long of a time but those days are over with the BBSHD. Completely redesigned with thicker windings, giant heat dissipating fins and a powerful 12 FET controller. There is nothing else like it on the market.

Go ahead, beat on it, the BBSHD was designed to take all of your abuse and more.

We are proud to be the first dealer in the world to have this drive in stock. We are shipping it with the controller hot rod programmed so not only can you get pedal assist when you want you can also get full throttle when you want it.



Regardingthe BBSHD and Legal Street Use

All drives come programmed for 750w. You can choose to re-program the drive for power capabilities of up to 1500w - but this is non-street legal and you assume all responsibility for this power configuration.
